Quick Answer: A flange mounted bearing is a bearing unit that supports a rotating shaft and mounts to a machine frame, wall, or panel through a flanged housing. The flange provides the mounting interface, while the bearing insert supports the shaft. Configurations vary by housing shape, bolt pattern, sealing, and shaft-locking method. Selection depends on the specific product data and the application’s load, space, and environment.
A flange mounted bearing is often chosen when a shaft needs support at a frame, wall, or panel rather than on a base. The name covers several designs, so the mounting interface, bearing type, sealing, and locking method should be checked together. The sections below explain the common construction, configurations, selection factors, installation basics, and limits.
Definition and Terminology
A flange mounted bearing combines a bearing with a flanged mounting feature. The flange is the mounting interface; the bearing is the rotating support element. In many unit designs, the bearing sits in a housing with bolt holes, and the housing is fixed to a machine frame, wall, or panel. This differs from a pillow block or plummer block, which normally sits on a base or pedestal.
The terminology is not fully uniform. Catalogs and users may say flange bearing, flanged bearing unit, or flange-mount ball bearing unit. A bearing insert may refer to the bearing element inside a housing. Some flanged bearings use plain bushings or other rolling elements, so the name alone does not prove the internal design. Check the product description, drawing, and load data before comparing parts.
Basic Construction of a Flange Mounted Bearing Unit
Construction varies, but the main functional parts are usually easy to identify. These include the bearing insert or rolling bearing, the flange housing, the mounting holes, the shaft interface, and the sealing and lubrication features. The housing supports the bearing and provides the flange mounting pattern. The bearing carries the shaft and allows rotation.
Generic component names are safer than assuming a fixed bill of materials. Housing material, bearing type, seal design, and locking method can differ between product families and applications.
Bearing Insert and Shaft Interface
In common unit designs, the bearing insert supports the rotating shaft and contains the rolling elements and raceways. The shaft interface is a critical fit: the shaft diameter, tolerance, surface condition, and locking method all affect how the unit runs.

Shaft-locking approaches include set screws or eccentric locking collars as examples, but no single method is universal. The correct method depends on the product design and the application. Confirm the locking option in the product data before ordering or installing.
Flange Housing and Mounting Features
The flange housing positions the bearing and provides bolt holes or other mounting points. Bolt pattern, flange shape, and housing material affect mounting compatibility and application suitability. A housing that fits the shaft but not the machine interface is not a suitable replacement.
Do not select by shaft size alone. Check the mounting footprint, bolt-hole alignment, and surrounding clearance against the machine. Exact dimensions and bolt spacing should come from the specific product drawing.
Sealing and Lubrication Features
Seals and lubrication features help protect the bearing from contaminants and reduce friction. Sealing and relubrication arrangements vary by product and environment. Some units are sealed for life; others include relubrication features. Dust, moisture, washdown, and temperature conditions can change the required protection.
Use the manufacturer’s instructions for lubrication type, quantity, and interval. Without that data, a general interval is not reliable.
How a Flange Mounted Bearing Works

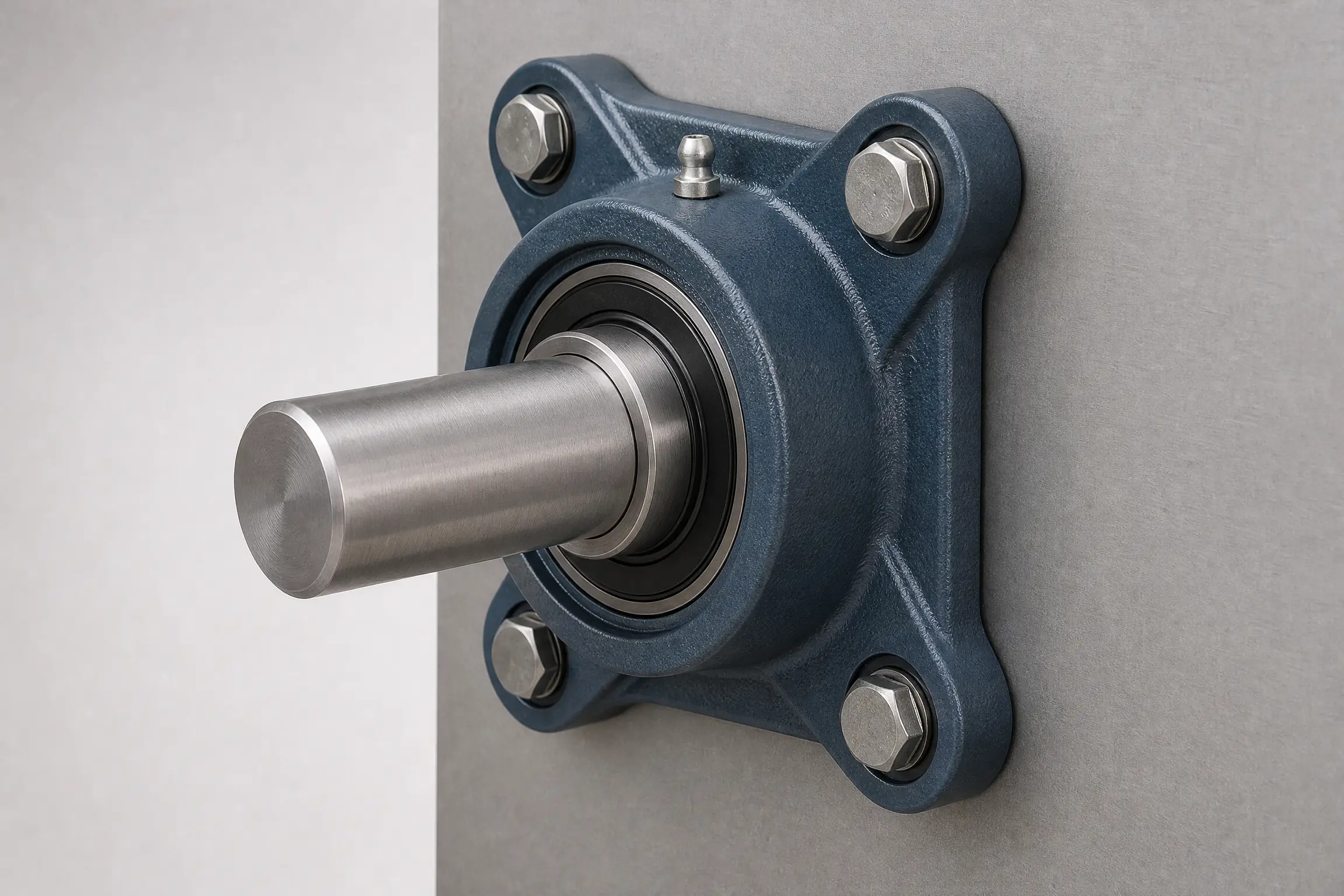

A flange mounted bearing supports a rotating shaft and locates it relative to a mounting surface. The flange transfers mounting forces into the machine structure. The bearing insert accommodates shaft rotation while the housing holds the bearing in position. The mounting surface therefore becomes part of the support path.
Load capacity and allowable misalignment depend on the specific bearing design and application. Radial and axial load capability should be checked for the specific product. Some designs handle mainly radial load; others can accommodate limited axial load. Do not assume that all flange mounted bearings support the same load directions or the same amount of misalignment.
Common Flange Configurations
Flange mounted bearings are available in multiple mounting configurations. Bolt count, flange shape, and housing style are common ways to classify them. These descriptions are general because catalogs differ and a single supplier may not offer every configuration.
Two-Bolt Flange Configuration
A two-bolt flange uses two mounting points. It can suit compact spaces and certain mounting surfaces, but suitability depends on load direction, mounting surface, and housing design. The bolt pattern should match the machine interface, and the housing must be appropriate for the load and environment.
Three-Bolt Flange Configuration
A three-bolt flange uses three mounting points and may appear in specific flange housing designs. The arrangement is not a universal standard. Verify the term, bolt pattern, and product data with the catalog. Do not treat a three-bolt design as interchangeable with a two-bolt or four-bolt housing without checking the interface and load path.
Four-Bolt Flange Configuration
A four-bolt flange uses four mounting points. It is often used where a more distributed mounting pattern is needed, subject to verification. A four-bolt pattern changes the distribution of mounting points, but bolt count alone does not prove higher load capacity or better alignment. Housing design, bearing type, and installation quality also matter.
Round, Oval, and Square Flange Shapes
Flange shape affects mounting footprint and clearance. Round, oval, and square flange shapes are common catalog categories. A round flange may fit a circular recess or compact area; an oval or square flange may suit a different bolt layout. Suitability depends on the machine interface, not on a general ranking of shapes.
Flange Mounted Bearing vs. Related Mounted Bearings

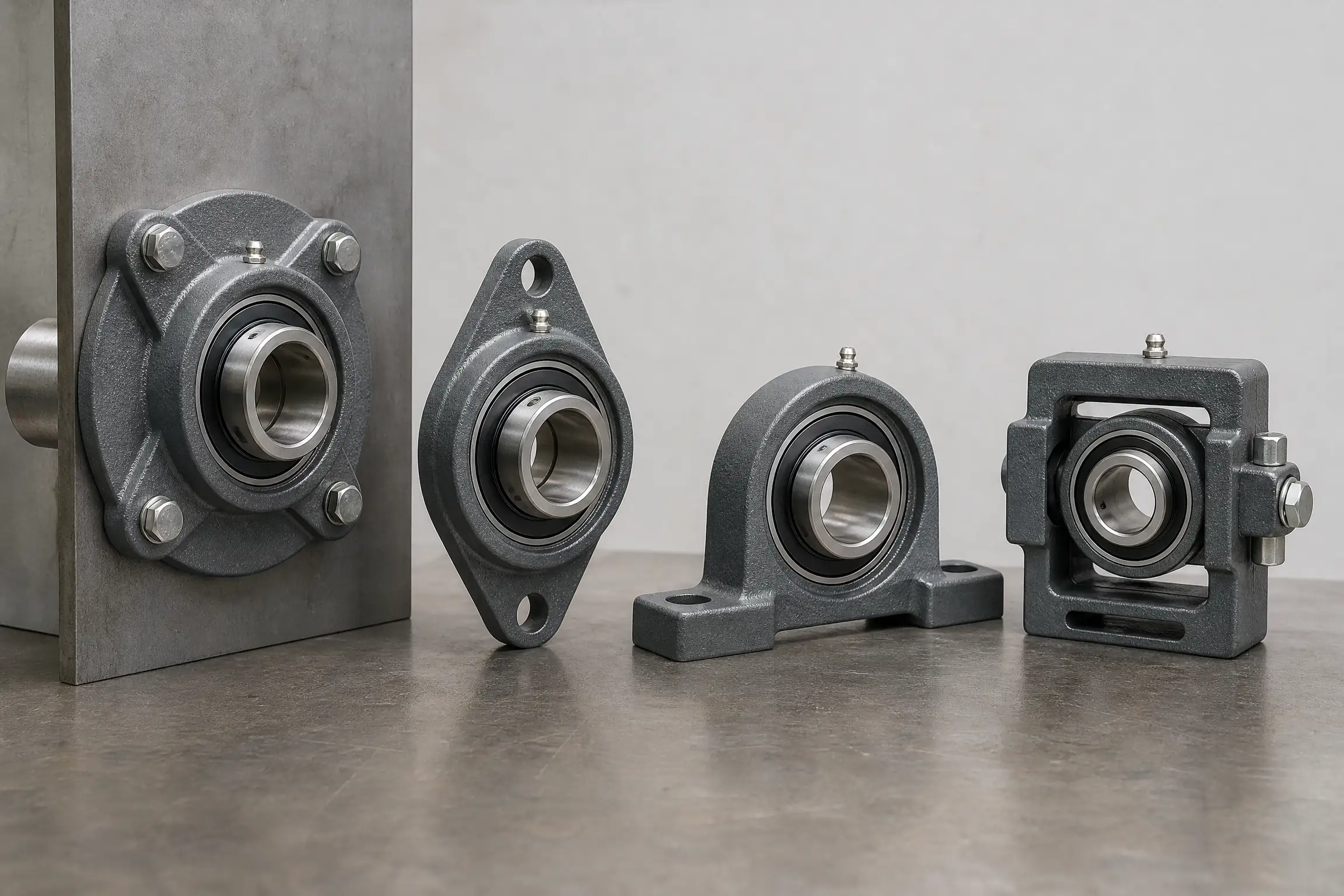

Flange mounted bearings are often compared with pillow block or plummer block mounted bearings. The main difference is the mounting method: a flange unit mounts through a flange to a frame, wall, or panel, while a pillow block normally mounts on a base. Both can support a rotating shaft, but the housing style and mounting orientation change the installation and adjustment considerations.
Plain flanged bearings or flanged bushings are another related category. They may look similar at the mounting face but use a different bearing principle. Check the internal design, load capability, and lubrication requirements before treating one as a substitute for another.

| Type | Mounting method | Main selection focus |
|---|---|---|
| Flange mounted bearing unit | Bolts through a flange to a frame, wall, or panel | Flange pattern, shaft fit, load direction, sealing, locking method |
| Pillow block or plummer block | Mounts on a base or pedestal | Base height, shaft alignment, load, sealing, adjustment |
| Plain flanged bearing or bushing | Flange locates a plain bearing or bushing | Friction, lubrication, load, speed, and clearance |
These categories are not ranked. The right choice depends on the machine layout and duty. A flange unit is not automatically better than a pillow block, and a pillow block is not automatically more rigid.
Selection Considerations
Selection depends on shaft size, load direction and magnitude, speed, environment, mounting space, and maintenance access. Use the specific product datasheet rather than a generic rule. A universal selection chart would be misleading without verified data for the product family.
Load Direction and Magnitude
Check radial and axial load capability for the specific bearing design. Misalignment and vibration conditions can affect selection. A bearing that works in a light conveyor application may not suit a heavy load with shock. Keep the load case attached to the product rating.
Shaft Size and Locking Method
The shaft diameter and locking method must match the bearing unit. Common locking methods include set screws and eccentric locking collars, but the catalog must confirm which option is available. The shaft surface and tolerance also matter. A locking method should be selected with the application context, not by convenience alone.
Environment and Sealing
Dust, moisture, washdown, and temperature conditions influence sealing and material choice. Harsh environments may require specific sealing or housing options. Do not assume an IP rating or washdown suitability unless the product data states it. Confirm the actual protection level and maintenance needs.
Mounting Space and Bolt Pattern
Flange size, bolt pattern, and surrounding clearance affect installation. Check the machine interface and bolt-hole alignment before selection. A unit that fits the shaft but not the bolt pattern is not installable. Use a dimensional drawing when available, and measure the mounting surface if the original drawing is missing.
Typical Applications
Flange mounting is useful when the mounting surface is perpendicular to the shaft or when space is constrained. Common application categories include wall-mounted shaft support, conveyor systems, and compact machine frames, subject to verification for the specific product.
- Wall-mounted shaft support: the flange can locate a shaft against a frame or panel.
- Conveyor systems: flange units may support rollers or shafts in tight spaces, but load and environment must be checked.
- Compact machine frames: a flanged housing can avoid the base footprint of a pillow block.
Application examples are not a substitute for product verification. Confirm the shaft, load, speed, sealing, and mounting interface for each use.
Installation and Maintenance Basics

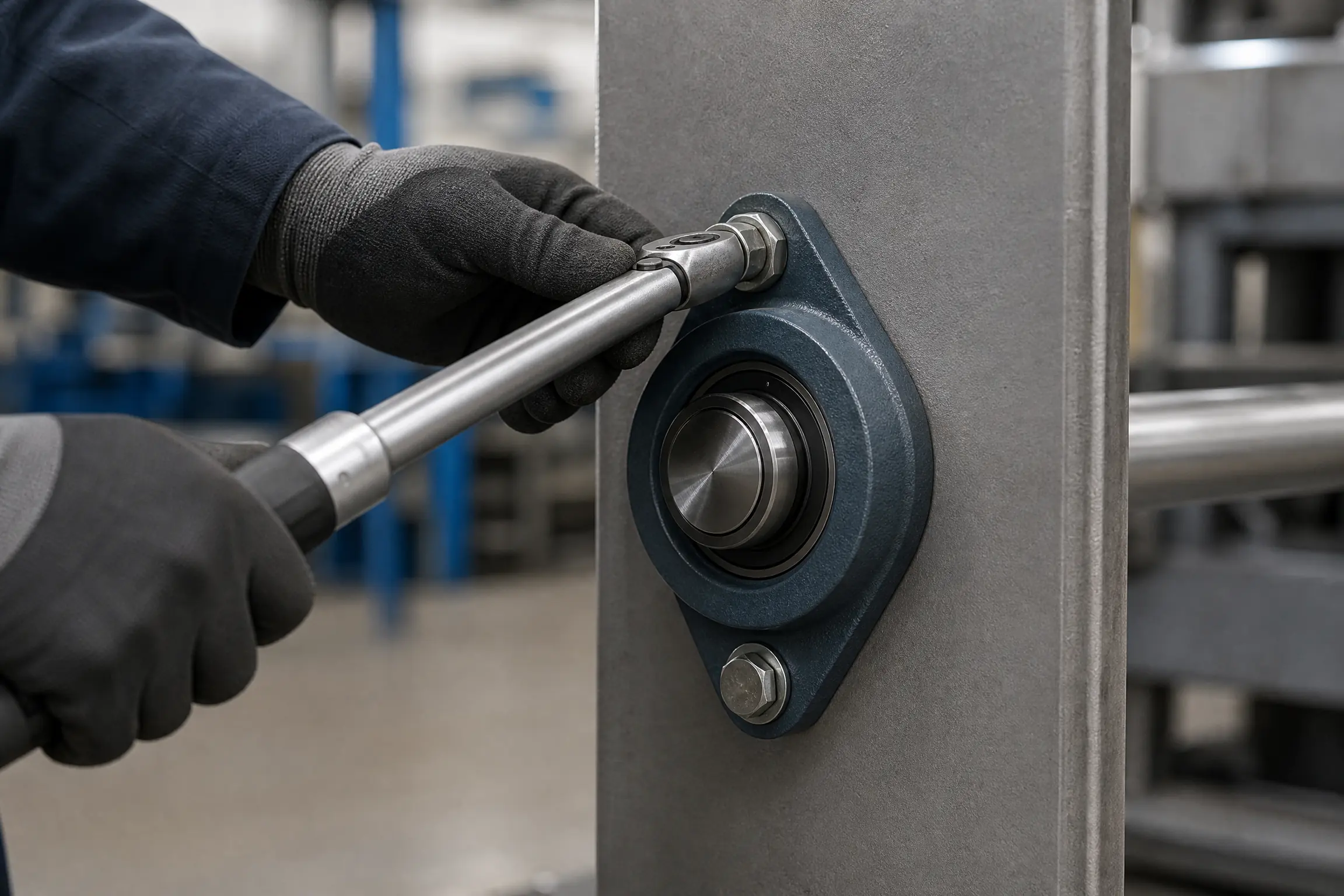

Basic installation considerations include mounting surface condition, bolt alignment, shaft fit, and locking method. Basic maintenance considerations include inspection, contamination control, and lubrication where applicable.
Installation checks:
- Inspect the mounting surface for flatness, cleanliness, and damage.
- Align the bolt holes without forcing the housing into position.
- Check the shaft diameter, surface, and fit before assembly.
- Confirm the locking method and follow the product instructions.
Maintenance checks:
- Look for looseness, abnormal noise, heat, or vibration.
- Keep seals and the surrounding area clean.
- Use the specified lubricant and quantity where relubrication is required.
- Investigate contamination or repeated leakage rather than only replacing the bearing.
Torque values, lubrication intervals, and alignment tolerances should come from the manufacturer’s instructions for the specific product. Without those values, general numbers are not safe.
Limitations and Common Misunderstandings
A flange mounted bearing is not automatically interchangeable with every other mounted bearing. Shaft size and flange shape are not enough to prove a match. Load capacity, sealing performance, and misalignment capability are design-specific.
- Not all flange units are the same: bearing type, housing material, seal design, and locking method can differ.
- Bolt count does not define capacity: a four-bolt housing is not automatically stronger than a two-bolt housing in every application.
- Flange mounting alone does not set performance: the bearing inside the housing and the installation quality also determine how the unit performs.
Treat a replacement as a system match: shaft, housing, mounting interface, load, environment, and maintenance access should all agree.
Conclusion
A flange mounted bearing is a practical way to support a shaft where the mounting surface is a frame, wall, or panel. Its flange provides the mounting interface, while the bearing insert carries the shaft. The right choice depends on the specific product data, including shaft fit, load direction, sealing, locking method, and bolt pattern. Before ordering or replacing a unit, confirm the machine interface and the catalog data. Do not select by flange shape or bolt count alone.
FAQs
Q1: What is a flange mounted bearing used for?
A: It supports a rotating shaft and mounts to a frame, wall, or panel through a flanged housing. It is useful when the shaft axis is perpendicular to the mounting surface or when a base-mounted pillow block does not fit the layout. Confirm the load, sealing, and bolt pattern for the specific product.
Q2: How is a flange mounted bearing different from a pillow block bearing?
A: A flange unit mounts through a flange to a surface; a pillow block normally sits on a base or pedestal. The difference affects installation orientation, clearance, and adjustment. Shaft size alone does not make them interchangeable.
Q3: Can a flange mounted bearing support axial loads?
A: It depends on the bearing design. Some flange mounted bearings can accommodate limited axial load, while others are selected mainly for radial load. Check the product’s load ratings and the actual direction of the applied load; do not assume axial capacity from the housing shape.
Q4: How do I choose between two-bolt and four-bolt flange configurations?
A: Start with the machine’s bolt pattern and available space, then check load direction, housing shape, and sealing. A two-bolt pattern may suit a compact interface, while a four-bolt pattern distributes mounting points differently. Bolt count alone does not determine capacity or alignment, so use the catalog drawing.
Q5: How is a flange mounted bearing installed?
A: Prepare a clean, flat mounting surface, align the bolt holes without forcing the housing, check shaft fit and locking method, and follow the manufacturer’s tightening instructions. Check alignment and freedom of rotation before putting the machine into service. Do not apply a torque value unless it is specified for the product.
Q6: Do flange mounted bearings require lubrication?
A: Some designs are sealed and pre-lubricated; others include relubrication features. Follow the product instructions for lubricant type, quantity, and interval. Keep contaminants out of the bearing area, and investigate leakage or repeated overheating rather than adding lubricant blindly.
Q7: What causes flange mounted bearing failure?
A: Common contributors include excessive load, misalignment, contamination, inadequate or incorrect lubrication, improper installation, and normal wear. Heat, noise, vibration, and looseness are symptoms that call for diagnosis; they do not prove one single cause. Check mounting, shaft fit, sealing, and operating conditions before replacing the unit.
