Rolling bearings are among the most widely used mechanical components in modern industry. From electric motors and automotive transmissions to heavy mining equipment and wind turbines, rolling bearings enable rotational motion while minimizing friction. According to industry data, the global rolling bearing market continues to grow, driven by increasing demand from automotive, aerospace, and industrial machinery sectors. Selecting the right rolling bearing for a specific application requires an understanding of bearing types, their characteristics, and key selection criteria. This guide provides a technical overview of rolling bearings to assist engineers and procurement professionals in making informed decisions.
What Is a Rolling Bearing?

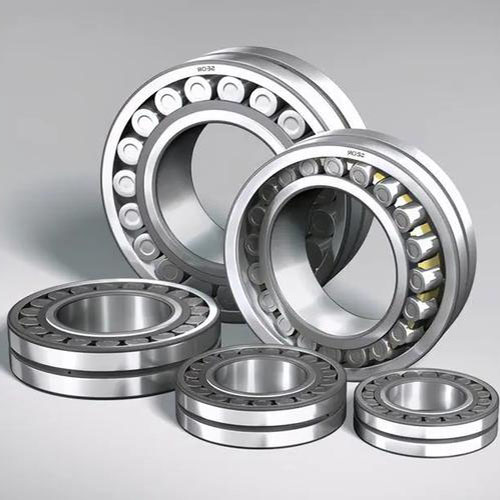

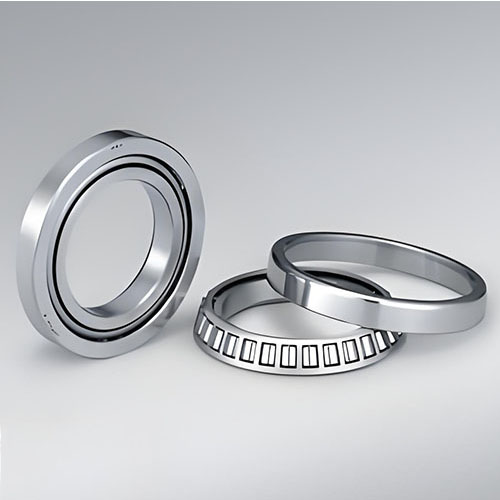

A rolling bearing is a mechanical component that facilitates rotational or linear motion by placing rolling elements—balls or rollers—between two concentric rings known as raceways. The basic structure of a rolling bearing consists of an inner ring, an outer ring, rolling elements, and a cage that separates and guides the rolling elements. When the bearing operates, the rolling elements roll between the inner and outer raceways, reducing friction compared to sliding contact.
Rolling bearings are distinct from plain bearings (also known as bushings or sleeve bearings), which rely on sliding contact and typically require continuous lubrication. The rolling motion in rolling bearings generates significantly lower friction, making them suitable for a wide range of speed and load conditions.
Advantages and Limitations of Rolling Bearings

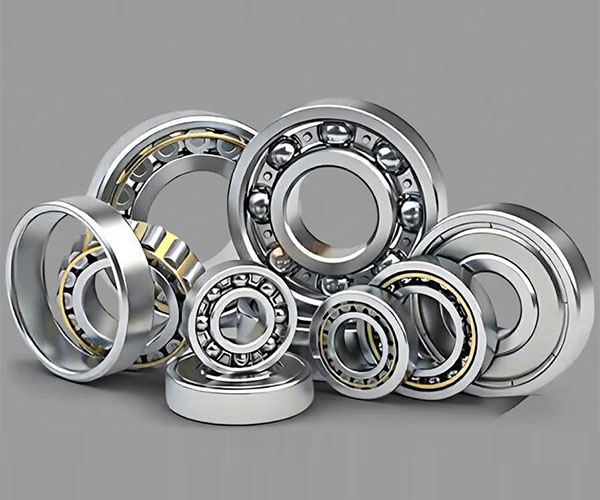

Advantages
Rolling bearings offer several technical advantages that make them the preferred choice for most rotational applications:
- Reduced Friction. The rolling contact between elements generates substantially lower friction than sliding contact, leading to reduced energy consumption and lower operating temperatures.
- High Load Capacity. Rolling bearings can support radial and axial loads depending on the bearing type and design. Roller bearings, in particular, offer higher load capacities than ball bearings of equivalent dimensions.
- High Durability and Service Life. When properly selected, installed, and maintained, rolling bearings provide long service life under normal operating conditions.
- Low Noise and Vibration. Precision-manufactured rolling bearings operate smoothly with minimal noise and vibration, which is essential for applications such as electric motors and precision machinery.
- High-Speed Capability. Ball bearings, due to their point contact geometry, can operate at high rotational speeds while maintaining low friction and heat generation.
- Versatility. Rolling bearings are available in numerous designs, sizes, and materials to accommodate diverse operating conditions, including high temperatures, corrosive environments, and contamination.
Limitations
While rolling bearings offer significant advantages for most rotational applications, they also have inherent limitations that engineers should consider:
- Sensitivity to Contamination. Rolling bearings require effective sealing and clean lubrication. Dirt, dust, or moisture ingress can lead to premature wear or failure.
- Limited Misalignment Accommodation. Except for spherical roller bearings, most rolling bearings tolerate only minimal shaft misalignment or mounting errors without reducing service life.
- Shock Load Vulnerability. Compared to plain bearings, rolling bearings are more susceptible to damage from impact loads or heavy shock due to stress concentration at rolling contacts.
- Noise at Very High Speeds. Even precision bearings generate some mechanical noise, which may be unacceptable in ultra-quiet applications such as medical imaging equipment.
Types of Rolling Bearings
Rolling bearings are broadly classified into two main categories based on the shape of the rolling elements: ball bearings and roller bearings.
Ball Bearings
Ball bearings use spherical balls as rolling elements. The contact between the balls and the raceways is theoretically a point contact, which results in low rolling resistance and makes ball bearings suitable for high-speed applications.

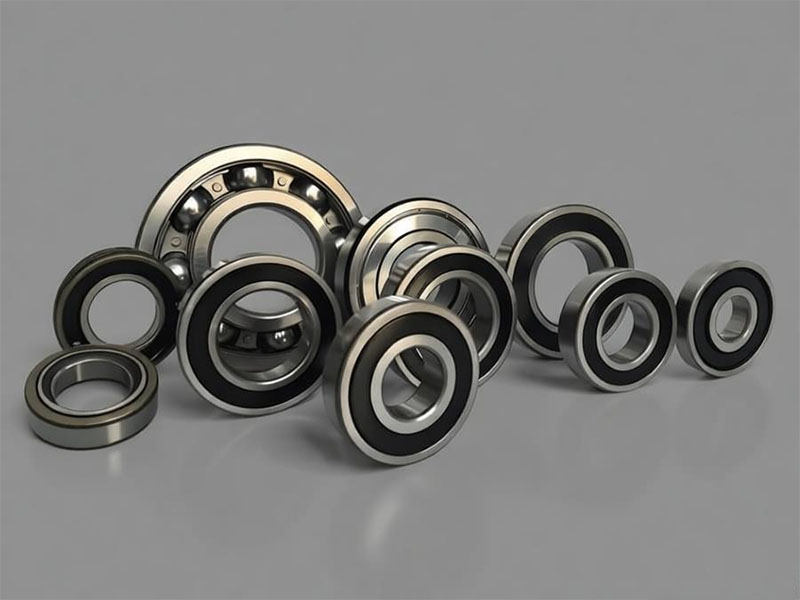

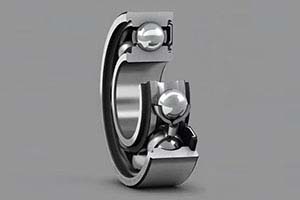

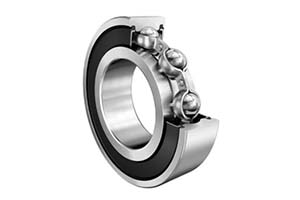

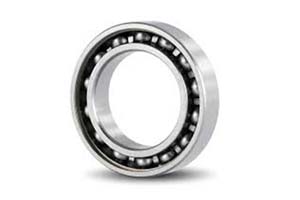

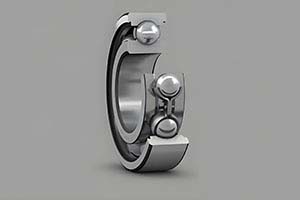

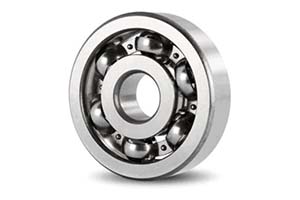

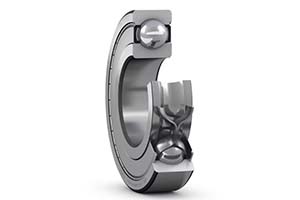

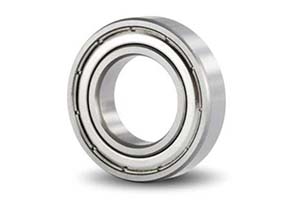

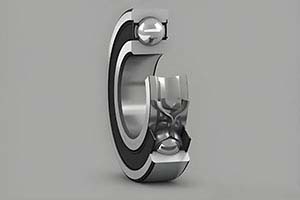

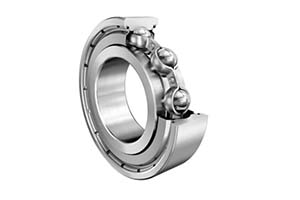

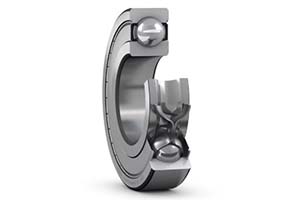

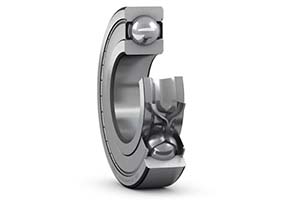

- Deep Groove Ball Bearings. This is the most common and versatile type of rolling bearing. Deep groove ball bearings are designed with raceways that are close to the diameter of the balls, allowing them to accommodate both radial and moderate axial loads in either direction. They are widely used in electric motors, fans, pumps, and general industrial machinery.

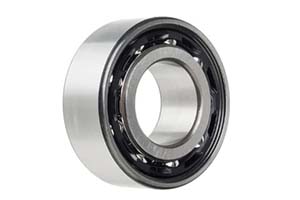

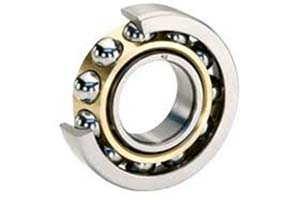

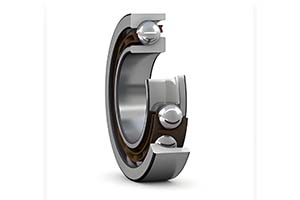

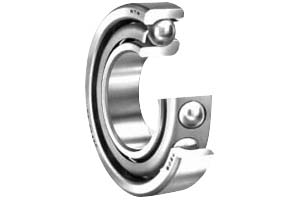

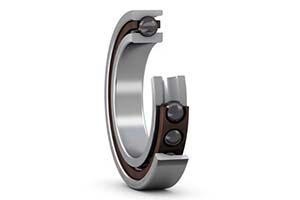

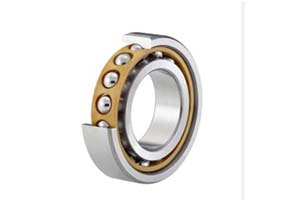

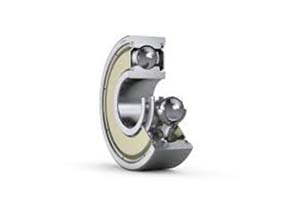

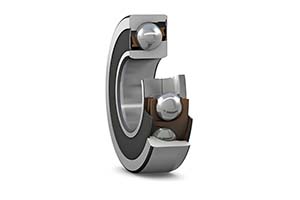

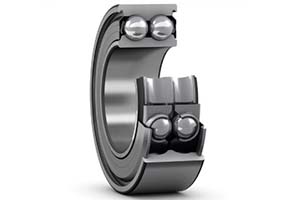

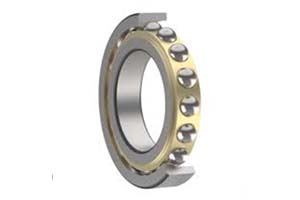

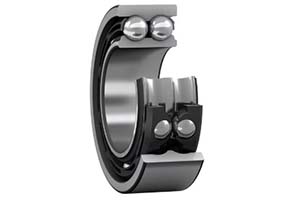

- Angular Contact Ball Bearings. These bearings have raceways that are offset relative to each other, creating a contact angle that allows them to withstand higher axial loads than deep groove ball bearings. However, angular contact bearings typically support axial load in only one direction and are often used in pairs to accommodate bidirectional thrust. Common applications include machine tool spindles and high-precision rotating systems.

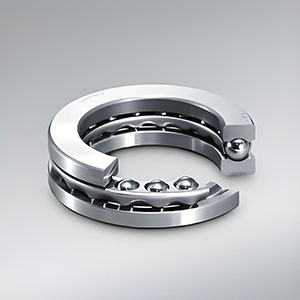

- Thrust Ball Bearings. Designed primarily for axial loads, thrust ball bearings consist of two raceway washers and a set of balls. They are suitable for applications where heavy axial loads are present, such as automotive steering columns and vertical shaft equipment.
Roller Bearings
Roller bearings use cylindrical, tapered, or spherical rollers as rolling elements. The contact between rollers and raceways is line contact, which provides higher load-carrying capacity and greater stiffness compared to ball bearings, but typically at the cost of lower speed capability.

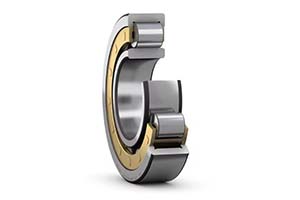

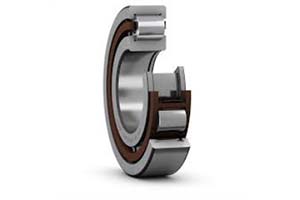

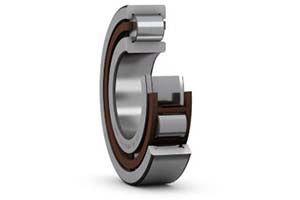

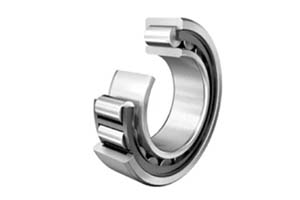

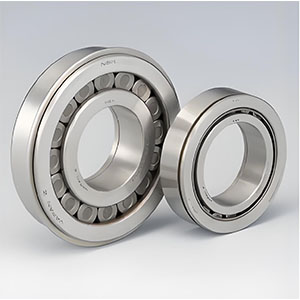

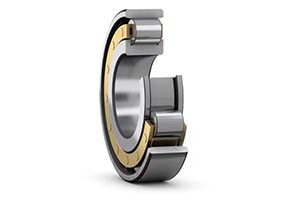

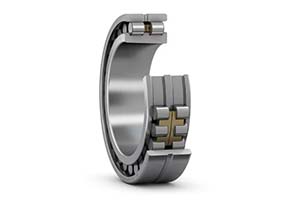

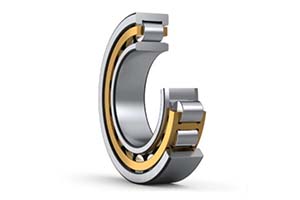

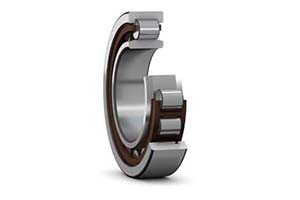

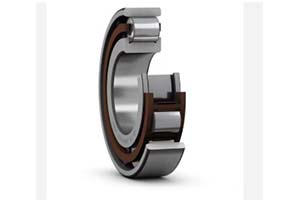

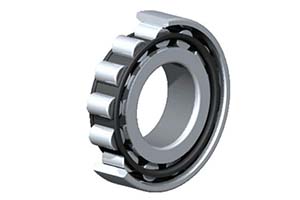

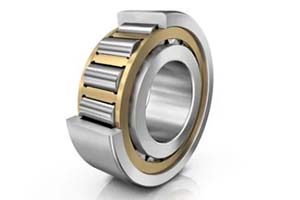

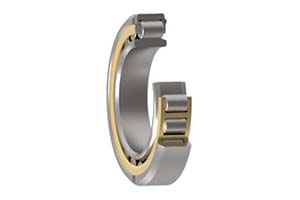

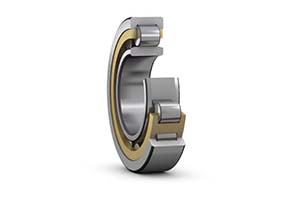

- Cylindrical Roller Bearings. These bearings use cylindrical rollers as the rolling elements and are designed to support high radial loads. Cylindrical roller bearings are available in various configurations (NU, NJ, NUP, N) to allow or restrict axial displacement. They are commonly used in heavy machinery, electric motors, gearboxes, and industrial pumps.

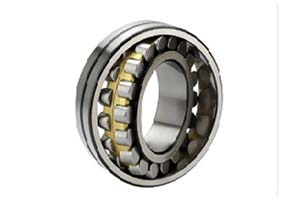

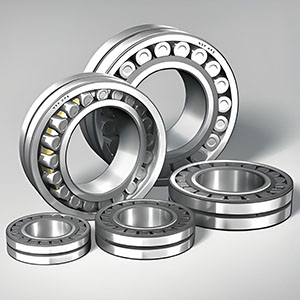

- Spherical Roller Bearings. Spherical roller bearings feature barrel-shaped rollers and a spherical outer ring raceway, which allows them to accommodate significant shaft misalignment or deflection. This self-aligning capability makes them ideal for applications where mounting errors or shaft bending are concerns, such as conveyor systems, paper mills, and mining equipment.

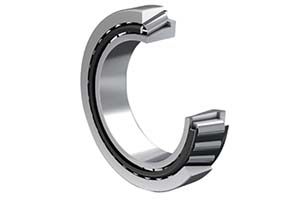

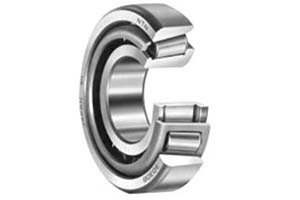

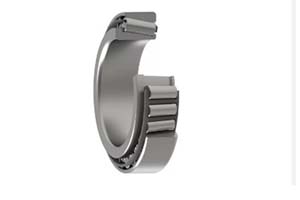

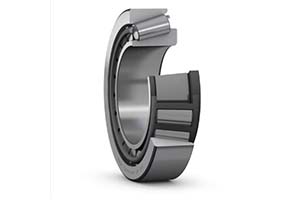

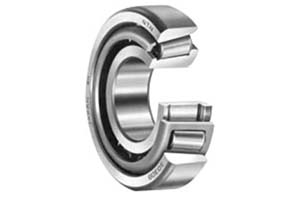

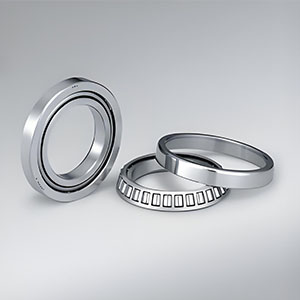

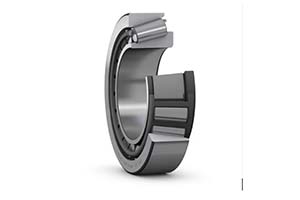

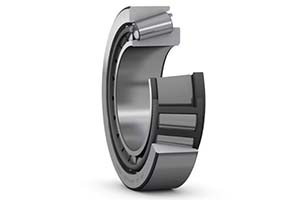

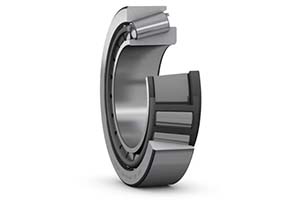

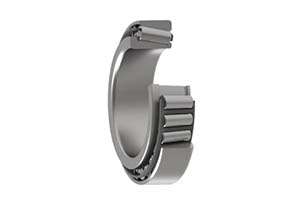

- Tapered Roller Bearings. Tapered roller bearings have tapered rollers and raceways designed to support combined radial and axial loads. The contact angle can be varied to achieve different load-carrying characteristics. These bearings are widely used in automotive wheel hubs, transmissions, differentials, and heavy industrial equipment where high load capacity and rigidity are required.
Ball Bearings vs. Roller Bearings
Ball bearings and roller bearings differ in several fundamental aspects that influence their application suitability. Ball bearings provide point contact between rolling elements and raceways, resulting in lower rolling resistance and suitability for high-speed applications. Roller bearings provide line contact, offering higher load capacity and greater stiffness but typically operating at lower speeds. Ball bearings can accommodate both radial and axial loads, while many roller bearing types are primarily designed for radial loads, with tapered roller bearings being a notable exception that handles combined loads effectively.
Common Applications of Rolling Bearings
Rolling bearings are found in virtually every industry that involves rotating machinery. The following are representative applications:
- Electric Motors and Fans. Deep groove ball bearings are the standard choice for electric motors due to their ability to handle moderate loads at high rotational speeds with low noise and vibration.
- Automotive Transmissions and Wheel Hubs. Tapered roller bearings and cylindrical roller bearings are extensively used in automotive transmissions, differentials, and wheel hubs, where they support combined radial and axial loads under demanding conditions.
- Conveyor Systems. Spherical roller bearings are commonly specified for conveyor systems, particularly where shaft misalignment or deflection is present.
- Gearboxes. Cylindrical roller bearings and tapered roller bearings are used in industrial gearboxes to support high radial and axial loads while maintaining shaft alignment.
- Heavy Machinery. Mining equipment, construction machinery, and paper mills rely on spherical roller bearings and cylindrical roller bearings for their high load capacity and durability in harsh environments.
- Helicopter Rotors and Axial Fans. Angular contact ball bearings and other precision bearings are used in aerospace applications where high-speed operation and reliability are critical.
How to Select the Right Rolling Bearing
Selecting the appropriate rolling bearing for a given application requires careful consideration of several technical factors:
- Load Characteristics. The type, magnitude, and direction of loads must be analyzed. Determine whether the application involves radial loads, axial loads, or combined loads. Consider whether loads are constant, oscillating, or subject to shock.
- Rotational Speed. Each bearing type has a maximum allowable operating speed, which depends on bearing size, cage design, lubrication method, and operating temperature. Ball bearings generally support higher speeds than roller bearings.
- Operating Temperature. Bearings must be selected with appropriate materials, internal clearance, and lubrication to accommodate the expected temperature range. High-temperature applications may require special heat-stabilized materials and high-temperature lubricants.

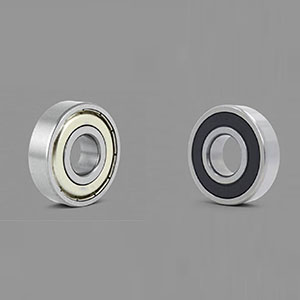

- Environmental Conditions. Factors such as contamination, moisture, corrosive chemicals, and vacuum conditions influence bearing selection. Seals or shields may be required to protect bearings from external contaminants.

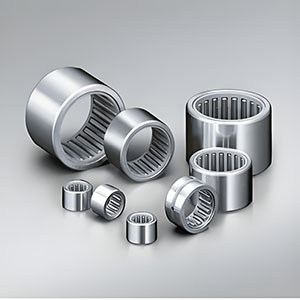

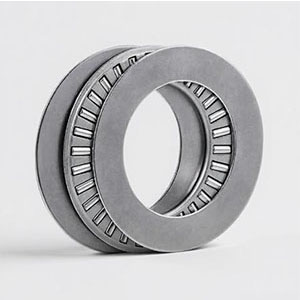

- Mounting and Space Constraints. Available mounting space, shaft and housing tolerances, and assembly methods affect bearing selection. Some applications require compact bearing designs, such as needle roller bearings, to fit within limited space.
Conclusion
Rolling bearings are essential components that enable efficient rotational motion across a vast range of industrial applications. Understanding the differences between ball bearings and roller bearings, as well as the specific characteristics of each bearing type, is critical for optimal equipment design and reliable operation. By carefully evaluating load requirements, speed conditions, operating temperatures, and environmental factors, engineers can select the most suitable rolling bearing for each application, ensuring long service life and reduced maintenance costs.
FAQs
Q1: When should roller bearings be used instead of ball bearings?
A1: Roller bearings should be used when applications require higher load capacity and greater stiffness, particularly for heavy radial loads. Ball bearings are generally preferred for high-speed applications where load magnitudes are moderate.
Q2: How do I choose the right rolling bearing for my application?
A2: The selection process should begin by determining load type and magnitude, rotational speed, operating temperature, environmental conditions, and available mounting space. Consulting bearing manufacturer catalogs and technical guidelines is recommended for specific selection calculations.
Q3: Why is lubrication critical for rolling bearings?
A3: Lubrication reduces friction between rolling elements and raceways, dissipates heat, prevents wear, and protects against corrosion. Inadequate lubrication is a leading cause of premature bearing failure.
Q4: How can rolling bearing problems be recognized?
A4: Common signs of rolling bearing problems include unusual noise (grinding, squealing, or rumbling), excessive vibration, increased operating temperature, and visible damage such as spalling or discoloration during inspection.
Q5: What is the difference between radial and axial load capacity in rolling bearings?
A5: Radial load capacity refers to the bearing’s ability to support forces perpendicular to the shaft axis, while axial load capacity refers to forces parallel to the shaft axis. Some bearing types—such as deep groove ball bearings and tapered roller bearings—can support both types of loads, while others are specialized for one load direction.
