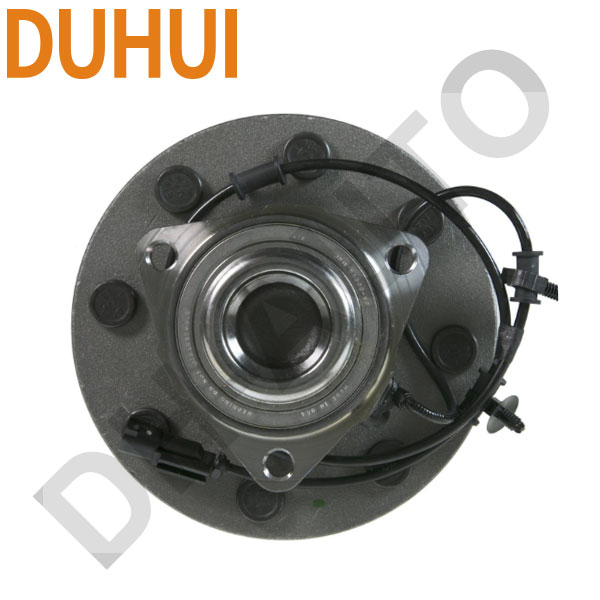

Wheel Hub 515114
The 515114 wheel hub assembly from DUHUI Bearing provides a direct-fit replacement for the front axle of select Dodge Ram 1500 and 2500 4WD vehicles manufactured between 2001 and 2008. This complete hub assembly includes an integrated ABS sensor and is pre-assembled for simplified installation. This kit matches OE specifications including 52010206AC and 052216B, and interchanges with industry-standard references such as Moog 515114, Mevotech H515114, and SKF BR930696.
Technical Specifications
| Specification | Value / Detail |
|---|---|
| DH Code | DWH01770 |
| Part Number | 515114 |
| Product Type | Wheel Hub Assembly |
| Installation Location | Front Axle |
| Kit Contents | Hub × 1 |
| Flange Diameter | 205.20 mm (8.079 inch) |
| Bolt Circle Diameter | 164.70 mm (6.483 inch) |
| Wheel Pilot Diameter | 121.00 mm (4.764 inch) |
| Brake Pilot Diameter | 122.20 mm (4.811 inch) |
| Flange Offset | 54.50 mm (2.146 inch) |
| Hub Pilot Diameter | 99.30 mm (3.909 inch) |
| Bolt Circle Diameter (Hub) | 172.00 mm (6.772 inch) |
| Wheel Stud Quantity | 8 |
| Flange Bolt Hole Quantity | 3 |
| Flange Shape | Modified |
| ABS Sensor | With integrated sensor |
Important: All information on this page is for reference only. Please verify OE numbers, dimensions, and vehicle fitment against your original part before ordering. Contact us for fitment confirmation.
DH Code & OE Numbers & Reference Numbers
DH Code:
DWH01770
OE Numbers:
52010206AC, 052216B
Reference Numbers (Interchange):
Moog: 515114
Mevotech: H515114
SKF: BR930696
Vehicle Fitment
DODGE RAM 1500: 2001–2008 (4WD, 8-Lug)
DODGE RAM 2500: 2001–2008 (4WD, 8-Lug)
All applications: Front Axle, 4WD, 8-Lug. Please verify OE number, dimensions and vehicle configuration before ordering.
Product Features
- Direct OE replacement for Dodge Ram 1500 and 2500 4WD applications. Matches OE specification 52010206AC.
- Integrated ABS sensor ensures proper anti-lock braking system function [citation:7].
- 8-lug wheel mounting pattern with 3-bolt flange attachment provides secure installation for heavy-duty applications.
- Roll-form design ensures consistent and optimal factory-installed preload [citation:1].
- Quad-lip seal design inhibits damage by keeping moisture and contaminants out [citation:1][citation:7].
- Pre-set, pre-lubricated, and sealed – maintenance-free design.
- Fully assembled kit – no additional components required for installation.
Installation Notes
- Verify your vehicle is 4WD with 8-lug wheels before installation. This hub is NOT compatible with 5-lug 2WD applications.
- Confirm your vehicle is equipped with ABS before installation.
- Before installation, compare the flange diameter (205.20 mm) and bolt pattern against your original hub.
- Connect the ABS sensor harness properly and ensure the cable is routed away from rotating components [citation:1].
- Torque the axle nut and mounting bolts to Dodge specification.
- This hub fits both front driver and passenger sides. Sold individually.
About DUHUI Bearing
Manufactured by DUHUI Bearing – an automotive bearing supplier established in Zhejiang, China, in 2003. DUHUI produces wheel hub assemblies, center support bearings, and related components to OE specifications. Contact us
