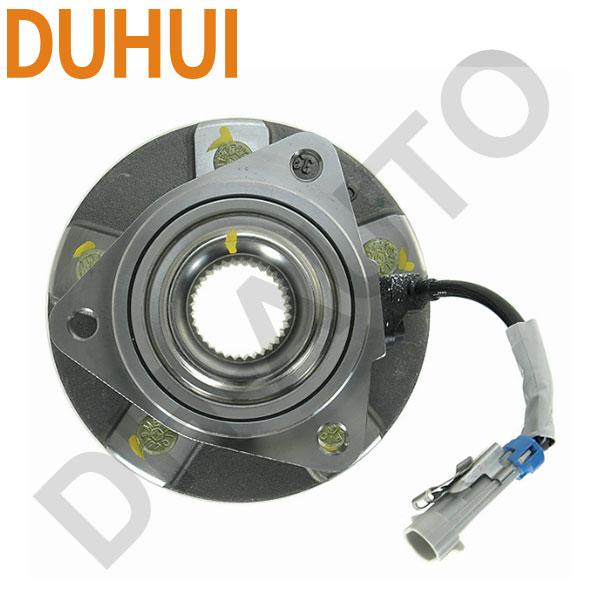

Wheel Hub 513189
The 513189 wheel hub assembly from DUHUI Bearing provides a direct-fit replacement for the front axle of select GM Theta platform vehicles, including Chevrolet Equinox, Pontiac Torrent, and Saturn Vue models manufactured between 2002 and 2007. This complete hub assembly includes an integrated ABS sensor and is pre-assembled for simplified installation. This kit matches OE specifications including 10359823, 22702717, and 21990564, and interchanges with industry-standard references such as Timken 513189, SKF BR930326, and Moog 513189.
Technical Specifications
| Specification | Value / Detail |
|---|---|
| DH Code | |
| Part Number | 513189 |
| Product Type | Wheel Hub Assembly |
| Installation Location | Front Axle |
| Kit Contents | Hub × 1 |
| Flange Diameter | 150.00 mm (5.906 inch) |
| Bolt Circle Diameter | 115.00 mm (4.528 inch) |
| Wheel Pilot Diameter | 70.10 mm (2.760 inch) |
| Brake Pilot Diameter | 70.60 mm (2.780 inch) |
| Flange Offset | 42.00 mm (1.654 inch) |
| Hub Pilot Diameter | 90.20 mm (3.551 inch) |
| Bolt Size | M12 × 1.5 |
| Bolt Quantity | 5 |
| Bolt Hole MET | M12 × 1.5 |
| Bolt Hole Quantity | 3 |
| Flange Shape | Triangular |
| ABS Sensor | With integrated sensor |
| Number of Splines | 33 |
Important: All information on this page is for reference only. Please verify OE numbers, dimensions, and vehicle fitment against your original part before ordering. Contact us for fitment confirmation.
DH Code & OE Numbers & Reference Numbers
DH Code:
OE Numbers:
10359823, 22702717, 21990564, 10351823
Reference Numbers (Interchange):
Timken: 513189
SKF: BR930326
Moog: 513189
Vehicle Fitment
CHEVROLET EQUINOX: 2005–2006
PONTIAC TORRENT: 2006
SATURN VUE: 2002–2007
All applications: Front Axle. Please verify OE number, dimensions and vehicle configuration before ordering.
Product Features
- Direct OE replacement for GM Theta platform vehicles. Matches GM specifications 10359823 and 22702717.
- Integrated ABS sensor ensures proper anti-lock braking system function.
- Triangular flange with 33-spline design provides exact fitment and secure wheel attachment.
- Pre-set, pre-lubricated, and sealed – maintenance-free design.
- Fully assembled kit – no additional components required for installation.
Installation Notes
- Verify your vehicle’s ABS configuration before installation. This hub is designed for applications with 4-Wheel ABS.
- Before installation, compare the flange diameter (150.00 mm) and spline count (33) against your original hub.
- Connect the ABS sensor harness properly and ensure the cable is routed away from rotating components.
- Torque the axle nut to GM specification. Over-tightening can damage the bearing preload.
- This hub fits both front driver and passenger sides. Sold individually.
About DUHUI Bearing
Manufactured by DUHUI Bearing – an automotive bearing supplier established in Zhejiang, China, in 2003. DUHUI produces wheel hub assemblies, center support bearings, and related components to OE specifications. Contact us
