Wheel Hub 513124

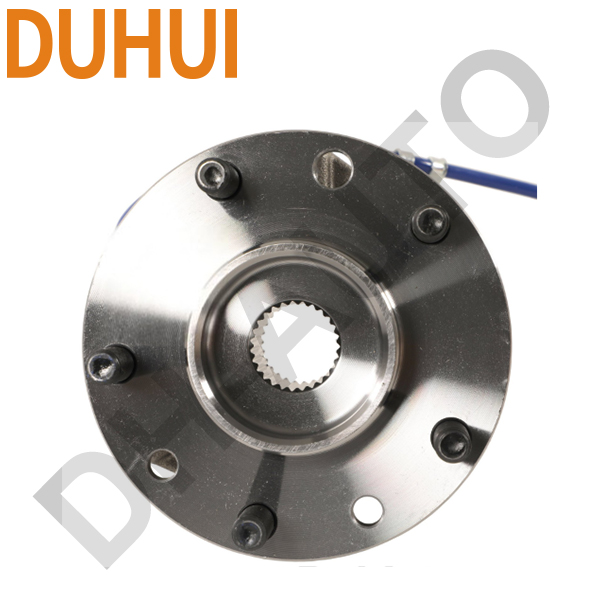

This 513124 wheel hub assembly from DUHUI Bearing provides a direct-fit replacement for the front axle of select GM S/T platform 4WD vehicles, including Chevrolet Blazer, Chevrolet S10, GMC Jimmy, GMC Sonoma, Isuzu Hombre, and Oldsmobile Bravada models manufactured between 1996 and 2005. It includes a complete hub assembly with an integrated ABS sensor and is ready for installation. This kit matches OE specifications including GM part numbers 12413045 and 12413046 and interchanges with industry-standard references such as Timken 513124, SKF BR930097, and FW9124.
Technical Specifications
| Specification | Value / Detail |
|---|---|
| DH Code | DWH1352 |
| Part Number | 513124 |
| Product Type | Wheel Hub Assembly |
| Installation Location | Front Axle |
| Kit Contents | Hub × 1 |
| Flange Diameter | 5.688″ / 144.50 mm |
| Bolt Circle Diameter | 4.757″ / 120.80 mm |
| Wheel Pilot Diameter | 2.759″ / 70.10 mm |
| Brake Pilot Diameter | 2.775″ / 70.50 mm |
| Flange Offset | 1.858″ / 47.20 mm |
| Hub Pilot Diameter | 3.208″ / 81.50 mm |
| Hub Bolt Circle Diameter | 4.748″ / 120.60 mm |
| Bolt Size | M12 × 1.5 |
| Bolt Quantity | 5 |
| Bolt Hole MET | M12 × 1.75 |
| Bolt Hole Quantity | 3 |
| Flange Shape | Modified Triangle |
| ABS Sensor | With integrated ABS sensor |
| Number of Splines | 27 |
The flange diameter of 5.688 inches (144.50 mm) and modified triangle flange design are critical fitment specs for this front wheel hub assembly. This kit includes the hub with an integrated ABS sensor and is pre-assembled for simplified installation.
Important: All information on this page is for reference only. Please verify OE numbers, dimensions, and vehicle fitment against your original part before ordering. Contact us for fitment confirmation.
DH Code & OE Number & Reference Numbers
DH Code:
DWH1352
OE Numbers:
12413045, 12413046, 19235761, 2HF13124
Reference Numbers (Interchange):
Timken: 513124
SKF: BR930097
FW9124
PT513124
Vehicle Fitment
CHEVROLET BLAZER (S10): 1997–2005 (4WD, Front)
CHEVROLET S10 PICKUP: 1997–2004 (4WD, Front)
GMC JIMMY: 1997–2005 (4WD, Front)
GMC SONOMA: 1997–2004 (4WD, Front)
ISUZU HOMBRE: 1998–2000 (4WD, Front)
OLDSMOBILE BRAVADA: 1997–2001 (AWD, Front)
Fitment note: This hub assembly fits GM S/T platform vehicles with 4WD/AWD front axle applications. Please verify OE number, dimensions and vehicle configuration before ordering.
Product Features
- Direct OE replacement. This hub assembly matches GM OE specifications 12413045 and 12413046 for S/T platform applications.
- Complete front axle hub. Includes hub with integrated ABS sensor for a full front wheel bearing replacement.
- Integrated ABS sensor. Built-in ABS sensor ensures proper anti-lock braking system functionality.
- Precision-engineered fitment. Features modified triangle flange design with 27-spline configuration for exact vehicle compatibility.
- Maintenance-free design. Pre-set, pre-lubricated, and sealed hub assembly requires no maintenance.
- Customization options. Product customization (Logo / Code / Pattern / Words) and packaging customization (Plastic bag / White box / Color box / Carton / Pallet) available upon request.
Installation Notes
- Verify fitment. Confirm this kit matches your original hub specifications before installation.
- Check your vehicle configuration. This hub is designed for GM S/T platform vehicles with 4WD/AWD front axle applications. Verify your specific model, year, and engine before ordering.
- ABS sensor compatibility. This hub includes an integrated ABS sensor. Ensure proper connection during installation.
- Kit contents. This kit includes one hub. Verify all components are present before installation.
- Professional installation recommended. Proper bearing installation and torque specifications are critical to prevent premature wear and wheel hub issues.
About DUHUI Bearing
Manufactured by DUHUI Bearing – an automotive bearing supplier established in Zhejiang, China, in 2003. DUHUI produces wheel hub bearings, center support bearings, and related components to OE specifications. Contact us
For fitment questions, compare your old part number against the OE numbers listed above.
