Wheel Hub 512156

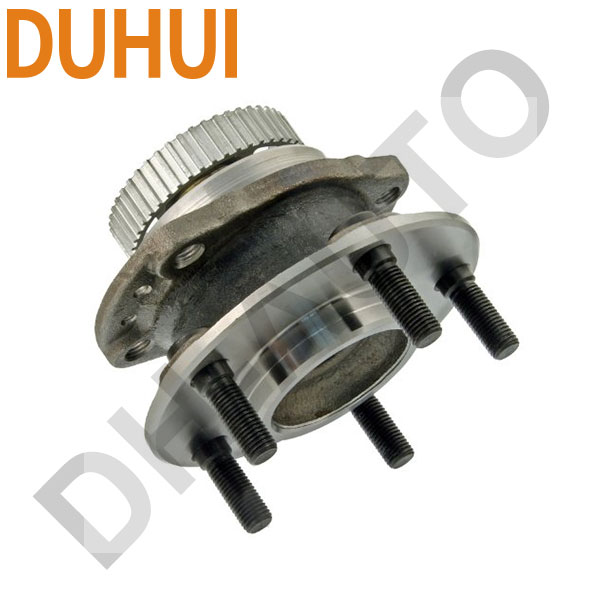

The 512156 wheel hub assembly from DUHUI Bearing provides a direct-fit replacement for the rear axle of select Chrysler, Dodge, and Plymouth minivans manufactured between 1996 and 2000. This complete hub assembly includes an integrated ABS tone ring sensor and is pre-assembled for simplified installation. This kit matches OE specifications including 4683515, 4683514, and 4721514, and interchanges with industry-standard references such as Timken 512156 and SKF KK29007.
Technical Specifications
| Specification | Value / Detail |
|---|---|
| DH Code | DWH1066 |
| Part Number | 512156 |
| Product Type | Wheel Hub Assembly |
| Installation Location | Rear Axle |
| Kit Contents | Hub × 1 |
| Flange Diameter | 140.00 mm (5.510 inch) |
| Bolt Circle Diameter | 114.30 mm (4.500 inch) |
| Wheel Pilot Diameter | 71.40 mm (2.810 inch) |
| Brake Pilot Diameter | 71.90 mm (2.830 inch) |
| Flange Offset | 48.00 mm (1.890 inch) |
| Hub Pilot Diameter | 86.10 mm (3.390 inch) |
| Hub Bolt Circle Diameter | 106.70 mm (4.200 inch) |
| Bolt Size | M12 × 1.5 |
| Bolt Quantity | 4 |
| Bolt Hole MET | M12 × 1.5 |
| Bolt Hole Quantity | 4 |
| Flange Shape | Rectangular |
| ABS Sensor | With integrated tone ring sensor |
| Number of Splines | N/A |
Important: All information on this page is for reference only. Please verify OE numbers, dimensions, and vehicle fitment against your original part before ordering. Contact us for fitment confirmation.
DH Code & OE Numbers & Reference Numbers
DH Code:
DWH1066
OE Numbers:
4683515, 4683514, 4721514, 4721515
Reference Numbers (Interchange):
Timken: 512156
SKF: KK29007
Vehicle Fitment
CHRYSLER VOYAGER: 2000 (FWD, 15″ & 16″ Wheels)
PLYMOUTH GRAND VOYAGER: 1996–2000 (FWD, 15″ Wheels)
PLYMOUTH VOYAGER: 1996–2000 (FWD, 15″ Wheels)
DODGE CARAVAN: 1997–2000 (FWD)
All applications: Rear Axle, FWD. Please verify OE number, dimensions and vehicle configuration before ordering.
Product Features
- Direct OE replacement for Chrysler minivans (NS platform). Matches specifications 4683515 and 4683514.
- Integrated ABS tone ring sensor ensures proper anti-lock braking system function.
- Rectangular flange design with 4-bolt hub attachment provides secure axle mounting.
- Pre-set, pre-lubricated, and sealed – maintenance-free design.
- Fully assembled kit – no additional components required for installation.
Installation Notes
- Verify your vehicle has 15″ or 16″ wheels and is front-wheel drive (FWD) before installation.
- Before installation, compare the flange diameter (140.00 mm) and bolt pattern against your original hub.
- Confirm the ABS tone ring sensor connector matches your vehicle’s harness.
- Torque the axle nut and mounting bolts to Chrysler specification.
- This hub fits both rear driver and passenger sides. Sold individually.
About DUHUI Bearing
Manufactured by DUHUI Bearing – an automotive bearing supplier established in Zhejiang, China, in 2003. DUHUI produces wheel hub assemblies, center support bearings, and related components to OE specifications. Contact us
