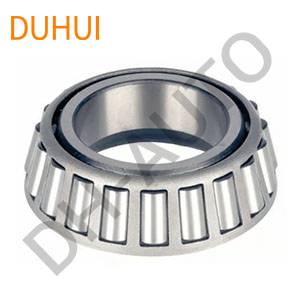

HM807040/807010 Wheel Bearing For FORD
The DUHUI Bearing HM807040/HM807010 is an inch-series single-row tapered roller bearing assembly consisting of a cone (inner ring) and cup (outer ring). With a 44.45 mm bore, 104.775 mm outer diameter, and 36.512 mm total width, this bearing is designed to support high radial loads and axial loads in one direction. It is widely used as the inner pinion bearing in Ford Dana 70 and Dana 70HD rear differentials.
Technical Specifications
| Specification | Value / Detail |
|---|---|
| DH Code | DWB2366 |
| Part Number | HM807040/HM807010 |
| Product Type | Tapered Roller Bearing – Single Row, Inch Series |
| Bore Diameter (d) | 44.45 mm (1.750 inch) |
| Outer Diameter (D) | 104.78 mm (4.125 inch) |
| Total Width (T) | 36.51 mm (1.438 inch) |
| Cone Width (B) | 36.51 mm (1.438 inch) |
| Cup Width (C) | 28.58 mm (1.125 inch) |
| Cone Radius | 3.50 mm (0.138 inch) |
| Cup Radius | 3.30 mm (0.130 inch) |
| Dynamic Load Rating (Cr) | 141-171 kN (31,700-38,400 lbf) |
| Static Load Rating (C0r) | 189-195 kN (42,500-43,800 lbf) |
| ISO Factor e | 0.49 |
| ISO Factor Y | 1.23 |
| Grease Limit Speed | 3,400-3,800 rpm |
| Oil Limit Speed | 4,800-5,100 rpm |
| Weight | 1.62 kg (3.57 lb) |
Note: Dimensional and load data is based on NSK, Timken, and ZKL published specifications for the HM807040/HM807010 series.
Important: All information on this page is for reference only. Please verify OE numbers, dimensions, and vehicle fitment against your original part before ordering. Contact us for fitment confirmation.
DH Code & OE Numbers & Reference Numbers
DH Code: DWB2366
OE Numbers:
HM807040/HM807010, FORD: 1537810, DANA: 000242255000
Reference Numbers (Interchange):
Timken: HM807040/HM807010, HM807040/HM807010P
NSK: HM807040/HM807010
NTN: HM807040/807010
Vehicle Fitment
This bearing is used as the inner pinion bearing in the following applications:
FORD E-350 ECONOLINE / SUPER DUTY: 1999-2012 (RWD)
FORD E-450 SUPER DUTY: 2003-2010 (4×2)
FORD F-350 SUPER DUTY: 2002-2015 (RWD, 4WD)
Compatible with Dana 70 and Dana 70HD rear axle assemblies.
Please verify OE number, dimensions and vehicle configuration before ordering.
Product Features
- Single-row tapered roller design supports combined radial and axial loads – suitable for differential pinion applications where heavy loads are encountered.
- Inch-series configuration with 44.45 mm bore and 104.775 mm outer diameter matches Ford OE 1537810 and Dana specifications for direct replacement.
- Separable cup and cone construction simplifies installation and maintenance – inner ring with roller assembly can be mounted independently.
- Heat-treated bearing steel with precision-ground raceways – rated for high dynamic and static loads suitable for heavy-duty rear axle applications.
- Cross-referenced with major brands including NSK, Timken, and ZKL – confirmed interchange available.
Installation Notes
- Confirm bore diameter (44.45 mm) and outer diameter (104.775 mm) match your existing bearing and housing before installation.
- This bearing is a combination of cone (HM807040) and cup (HM807010) – the cone includes the inner ring with cage and roller set, while the cup is the outer ring.
- Inspect the shaft and housing for wear or damage – replace if scoring or pitting is present.
- Single-row tapered roller bearings must be mounted in mirror-image arrangement with a second tapered roller bearing to accommodate axial loads in both directions.
- Set bearing preload according to Ford or Dana service manual specifications for proper differential operation.
- Lubricate with high-quality gear oil meeting manufacturer specifications for the Dana 70 axle.
About DUHUI Bearing
Manufactured by DUHUI Bearing – an automotive bearing supplier established in Zhejiang, China, in 2003. DUHUI produces tapered roller bearings and automotive components to OE specifications. Contact us
