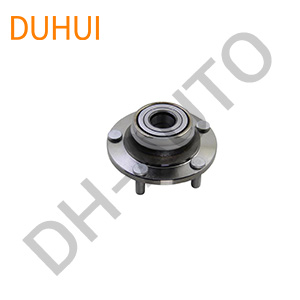

DACF2813455 Wheel Hub Bearing For Changan
The DUHUI DACF2813455 wheel hub bearing is a direct-fit rear axle replacement designed for Changan Star M201 models. This rear wheel hub bearing meets OE specifications DACF2813455 and EBH2482, delivering reliable performance in the aftermarket.
Specifications
| Parameter | Value |
|---|---|
| DH Code | DWH01142 |
| Part Number | DACF2813455 |
| Position | Rear Axle |
| Bearing Type | 2nd generation hub bearing |
| Inner Diameter (d) | 28.00 mm (1.102 inch) |
| Outer Diameter (D) | 134.00 mm (5.276 inch) |
| Width (B) | 40.00 mm (1.575 inch) |
| Bolt Circle (G) | 114.30 mm (4.500 inch) |
| Bolt Holes | 5 |
| ABS Sensor | Included |
| Thread Size | M12 x 1.25 |
| Material | GCr15 Chrome Steel |
| Row Type | Double Row |
| Precision Rating | ABEC-3 / ABEC-5 |
Note: Dimensional data is based on available sources. Please verify measurements against your original bearing before ordering.
Important: All information on this page is for reference only. Please verify OE numbers, dimensions, and vehicle fitment against your original part before ordering. Contact us for fitment confirmation.
DH Code & OE Numbers & Reference Numbers
DH Code: DWH01142
OE Numbers: DACF2813455, EBH2482
Reference Numbers (Interchange):
2DACF: DACF2813455
CJB: DACF2813455
Vehicle Fitment
CHANGAN: Star M201, New Star M201D
Please verify OE number, dimensions and vehicle configuration before ordering.
Product Features
- Rear wheel hub bearing engineered specifically for Changan Star M201 models
- 2nd generation hub bearing design with 5-bolt flange for secure wheel attachment
- Double row ball bearing design provides stable load distribution
- Precision roll-formed design ensures consistent and optimized factory-installed preload, minimizing excessive noise and wear
- Application-specific advanced raceway designs reduce stress, rotation and heat on components, extending service life
- Coated wheel bolts effectively prevent rust, ensuring smooth disassembly and accurate torque
- Manufactured in ISO/TS 16949 certified facilities with 100% product inspection
- Factory-sealed and pre-lubricated – no routine maintenance required
Installation Notes
- Verify the OE number on your original bearing matches DACF2813455 before installation
- Confirm rear axle fitment for your specific Changan Star M201 model
- This bearing includes ABS sensor – verify your vehicle has ABS configuration
- Check 5-bolt flange pattern matches your vehicle’s hub
- Clean the hub mounting surface thoroughly before fitting the new assembly
- Use a proper hydraulic press or hub installer – do not strike the bearing directly with a hammer
- Torque the axle nut to Changan service manual specifications; over-torquing can shorten bearing life
- After installation, check ABS sensor clearance and rotate the hub to ensure smooth operation
