594A/592A Wheel Bearing For FORD

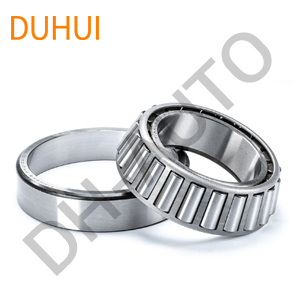

The DUHUI Bearing 594A/592A wheel bearing is an inch-series single-row tapered roller bearing assembly consisting of a 594A cone (inner ring) and a 592A cup (outer ring). With a 95.25 mm bore, 152.4 mm outer diameter, and 39.688 mm total width, this bearing supports combined radial and axial loads in heavy-duty truck, bus, and commercial vehicle axle housings and wheel hubs. It matches Ford OE specification BH4X1238AA and is cross-referenced with Timken 594A/592A, SKF 310300666, and Fersa 594A592A.
Technical Specifications
| Specification | Value / Detail |
|---|---|
| DH Code | DWB2415 |
| Part Number | 594A/592A |
| Product Type | Tapered Roller Bearing – Single Row, Inch Series |
| Bore Diameter (d) | 95.25 mm (3.750 inch) |
| Outer Diameter (D) | 152.40 mm (6.000 inch) |
| Total Width (T) | 39.69 mm (1.563 inch) |
| Cone Width (B) | 36.32 mm (1.430 inch) |
| Cup Width (C) | 30.16 mm (1.187 inch) |
| Cone Number | 594A |
| Cup Number | 592A |
| Dynamic Load Rating (Cr) | 237.0 kN (53,300 lbf) |
| Static Load Rating (C0r) | 305.0 kN (68,500 lbf) |
| Grease Limit Speed | 2,200 rpm |
| Oil Limit Speed | 3,200 rpm |
| Material | High Carbon Chrome Steel (GCr15) |
| Weight | 2.47 kg (5.45 lb) |
Note: Dimensional data is based on Timken and SKF published specifications for the 594A/592A series. Please verify measurements against your original bearing before ordering.
Important: All information on this page is for reference only. Please verify OE numbers, dimensions, and vehicle fitment against your original part before ordering. Contact us for fitment confirmation.
DH Code & OE Numbers & Reference Numbers
DH Code: DWB2415
OE Numbers:
BH4X1238AA, 2702062, 6502814, 9437934, 8094372280, 01905000, 1905000, 503356156, 9589810105, 3661014100, 181128S, 181298S, 183704, 22564776S, 22564779S, 3945029, 8127818
Reference Numbers (Interchange):
Timken: 594A/592A, SET216, SET403, 310300666
SKF: 310300666
Fersa: 594A592A, AS594A592A, 594592A
DT Spare Parts: 013828, 2.96214
AUGER: 69705
SAMPA: 031356
Vehicle Fitment
FORD: Various heavy-duty truck models (verify OE number and dimensions before ordering)
VOLVO: Various commercial vehicle models (verify OE number and dimensions before ordering)
MERCEDES-BENZ: Various commercial vehicle models (verify OE number and dimensions before ordering)
ISUZU: Various commercial vehicle models (verify OE number and dimensions before ordering)
RENAULT: Various commercial vehicle models (verify OE number and dimensions before ordering)
Please verify OE number, dimensions and vehicle configuration before ordering.
Product Features
- Single-row tapered roller design supports combined radial and axial loads in one direction – suitable for heavy-duty truck axle and wheel hub applications.
- Inch-series configuration with 95.25 mm bore and 152.4 mm outer diameter matches Timken 594A/592A, SKF 310300666, and Fersa equivalents for direct replacement.
- Separable cup and cone construction (594A cone / 592A cup) simplifies installation and maintenance – inner ring with roller assembly can be mounted independently.
- Heat-treated bearing steel with precision-ground raceways – rated for 237 kN dynamic load and 305 kN static load for demanding commercial vehicle drivetrains.
- Open-type configuration supports splash lubrication and oil bath systems common in heavy-duty axle and hub applications.
- Cross-referenced with Ford BH4X1238AA and multiple commercial vehicle OE numbers – confirmed interchange available.
Installation Notes
- Confirm bore diameter (95.25 mm) and outer diameter (152.40 mm) match your existing bearing and housing before installation.
- This bearing is a combination of cone (594A) and cup (592A) – the cone includes the inner ring with cage and roller set, while the cup is the outer ring.
- Inspect the shaft and housing for wear or damage – replace if scoring or pitting is present.
- Single-row tapered roller bearings must be mounted in mirror-image arrangement with a second tapered roller bearing to accommodate axial loads in both directions.
- Set bearing preload according to vehicle manufacturer specifications – tapered rollers require proper adjustment for axle and wheel hub operation.
- Lubricate with high-quality gear oil or grease – refer to the vehicle service manual for viscosity grade and lubrication method.
