When operating at extremely high speeds, traditional mechanical bearings often struggle with friction, heat generation, and eventual wear. So, how do engineers overcome these limitations? The answer lies in magnetic bearings. A magnetic bearing is a type of bearing that supports a rotating shaft using magnetic levitation, meaning there is no physical contact between the moving parts. Instead of rolling elements like balls or rollers, it uses magnetic fields to maintain the position of the rotor. This technology is critical for applications requiring high speed, high precision, and minimal maintenance. But how does this seemingly futuristic technology actually work?

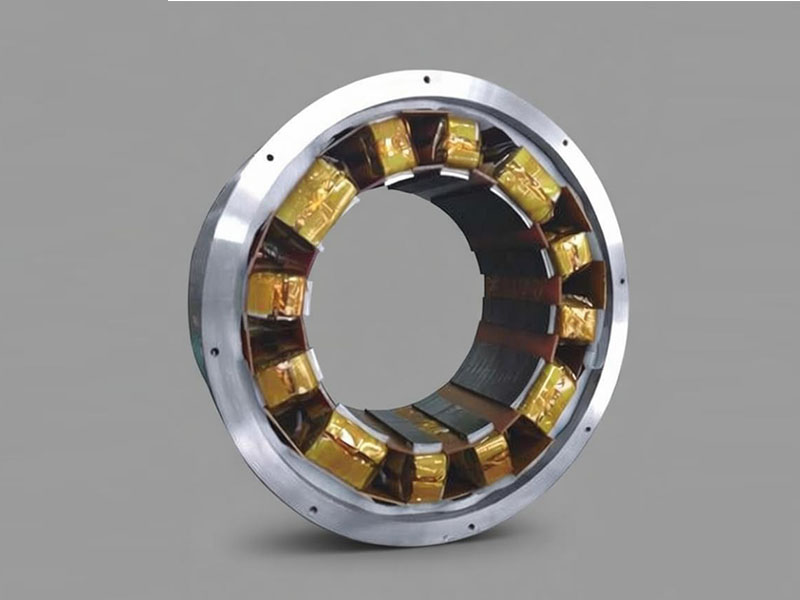

1. How Magnetic Bearings Work: Principles and Components
To understand how a magnetic bearing achieves contactless operation, it is essential to look at its core principles and the key components that work together in real-time.
1.1 Working Principle
The fundamental principle of a magnetic bearing is electromagnetic suspension. Sensors continuously monitor the position of the rotor. When the rotor deviates from its central position, a controller sends signals to electromagnetic coils, which adjust the magnetic force to pull the rotor back to the desired position. This cycle happens thousands of times per second, ensuring stable rotation without any physical contact.
1.2 Key Components
- Electromagnets: These are the actuators that generate the magnetic field. Positioned around the shaft, they apply attractive forces to control the rotor’s position in multiple axes.
- Sensors: Typically eddy current sensors or inductive sensors, these components detect the rotor’s position with micron-level precision. They provide constant feedback to the controller.
- Controller: Often a digital PID (Proportional-Integral-Derivative) controller, this is the “brain” of the system. It processes sensor data and calculates the exact current needed for each electromagnet to maintain stability.
2. Types of Magnetic Bearings
Magnetic bearings are generally categorized into two main types based on how the magnetic field is generated and controlled:
- Active Magnetic Bearings (AMB): This is the most common type. AMBs use electronically controlled electromagnets to maintain levitation. Because the magnetic field is actively adjusted, they offer high precision and stiffness, making them suitable for a wide range of industrial applications.
- Passive Magnetic Bearings (PMB): These use permanent magnets to provide levitation. While they do not require external power or complex control systems, they often lack damping characteristics. Therefore, they are typically used in combination with active systems or in applications where stability is less critical.
3. Magnetic Bearings vs. Mechanical Bearings: Key Differences
For engineers deciding between bearing technologies, understanding the differences between magnetic bearings and traditional mechanical bearings (such as ball or roller bearings) is crucial.
- Friction and Wear: Mechanical bearings involve physical contact between rolling elements and raceways, leading to friction and eventual wear. Magnetic bearings eliminate physical contact entirely, resulting in virtually no mechanical wear.
- Operational Speed: Mechanical bearings are limited by their DN value (bore diameter × rotational speed). Magnetic bearings have no such speed limits; they are only constrained by the tensile strength of the rotor material, allowing for extremely high surface speeds.
- Lubrication Requirements: Traditional bearings typically require oil or grease for lubrication and cooling. Magnetic bearings operate dry, eliminating the need for lubrication systems and reducing the risk of contamination, which is critical in clean environments like semiconductor manufacturing.
- Cost and Efficiency: While the initial cost of a magnetic bearing system is higher due to the control electronics, the total cost of ownership can be lower. They offer higher energy efficiency (due to reduced friction) and lower maintenance costs compared to complex mechanical systems that require oil changes and part replacements.
4. Service Life and Reliability of Magnetic Bearings
One of the most common questions about this technology is its longevity and reliability in critical applications.
4.1 How Long Do Magnetic Bearings Last?
Theoretically, a magnetic bearing can have an infinite service life. Since there is no contact between the stator and the rotor, there is no wear and tear on the bearing surfaces. However, the lifespan of the overall system is determined by the electronic components (such as capacitors and transistors in the controller) and the auxiliary systems.
4.2 Factors Affecting Longevity
Frictionless Operation: The absence of mechanical contact eliminates fatigue failure, which is the primary cause of failure in mechanical bearings.
Electronics Reliability: The system relies on the controller. High-quality, robust electronics are essential for ensuring long-term operation.
Maintenance-Free Design: Many magnetic bearing systems are designed to be maintenance-free for extended periods, as they do not require lubrication or regular mechanical adjustments.
Backup Bearings: In case of power failure or system overload, magnetic bearing systems include auxiliary bearings (often called “touchdown bearings”). These protect the rotor and stator from damage during a shutdown, ensuring safe system failure modes.
5. Applications of Magnetic Bearings
The unique advantages of magnetic bearings—high speed, cleanliness, and low maintenance—make them indispensable across various industries:
- Turbomachinery: Oil and gas industries use magnetic bearings in centrifugal compressors, expanders, and gas turbines to achieve high efficiency and avoid process gas contamination.
- Compressors and Pumps: HVAC systems and industrial chillers utilize magnetic bearings to improve energy efficiency and reduce noise.
- High-End Manufacturing and Automotive: In automotive applications, they are used in turbochargers and high-speed electric motors for electric vehicles (EVs) to achieve compact, high-performance designs.
- Aerospace: Flywheel energy storage systems and aircraft auxiliary power units (APUs) rely on magnetic bearings for reliability and reduced maintenance.
- Medical Equipment: In medical devices such as ventricular assist devices (VADs) and centrifuges, magnetic bearings ensure sterile, frictionless operation.
Conclusion
In summary, a magnetic bearing is a sophisticated technology that uses electromagnetic forces to suspend a rotating shaft without physical contact. By combining principles of electromagnetism, precision sensors, and real-time control, it eliminates friction, allows for ultra-high speeds, and significantly reduces maintenance requirements compared to traditional mechanical bearings.
