6203-2RS Single Row Deep Groove Ball Bearing

The first-gen bearings typically use Z, RZ or RS seals. Z seal indicates a non-contact metal dust cover. RZ seal indicates a non-contact skeleton rubber seal ring. RS seal indicates a contact rubber seal ring.

Contact us now
  • 6203-2RS 62032RS Single Row Deep Groove Ball Bearing (1)
  • 6203-2RS 62032RS Single Row Deep Groove Ball Bearing (2)
  • 6203-2RS 62032RS Single Row Deep Groove Ball Bearing (3)
  • 6203-2RS 62032RS Single Row Deep Groove Ball Bearing (4)
  • 6203-2RS 62032RS Single Row Deep Groove Ball Bearing (5)
  • 6203-2RS 62032RS Single Row Deep Groove Ball Bearing (1)
  • 6203-2RS 62032RS Single Row Deep Groove Ball Bearing (2)
  • 6203-2RS 62032RS Single Row Deep Groove Ball Bearing (3)
  • 6203-2RS 62032RS Single Row Deep Groove Ball Bearing (4)
  • 6203-2RS 62032RS Single Row Deep Groove Ball Bearing (5)
DWB3004

6203-2RS Single Row Deep Groove Ball Bearing 17mm x 40mm x 12mm

  • OE codes: 6203-2RS, 62032RS
  • The 6203-2RS bearing has an inner diameter of 17mm, an outer diameter of 40mm, and a width of 12mm.
  • The 6203-2RS bearing features a deep groove ball design, offering advantages such as high speed, low friction, and low noise.
  • The 6203-2RS bearing is pre-lubricated at the factory, making installation very simple and convenient.
  • The 6203-2RS bearing has an operating temperature range of -25°C to 110°C, sufficient for various everyday applications.
  • The 6203-2RS bearing can be widely used in various industries, including agricultural tractor bearings, industrial precision machine tool bearings, and automotive wheel hub bearings.
Send Inquiry Now

6203-2RS 62032RS Single Row Deep Groove Ball Bearing 17mm x 40mm x 12mm

The 6203-2RS bearing is a variant of the 6203 series single-row deep groove ball bearing. It weighs about 0.066kg, and its basic parameters are 17mm x 40mm x 12mm (dxDxB). It is equipped with a 2RS double-sided rubber dust cover seal, providing relatively good sealing performance.

The 6203-2RS bearing boasts advantages such as high speed and low friction. Even under high-speed operation, it maintains low noise and temperature rise can be controlled within -30°C.

The 6203-2RS bearing exhibits excellent wear and corrosion resistance, allowing it to withstand various complex environments in daily use, such as humidity, steam, and oil contamination.

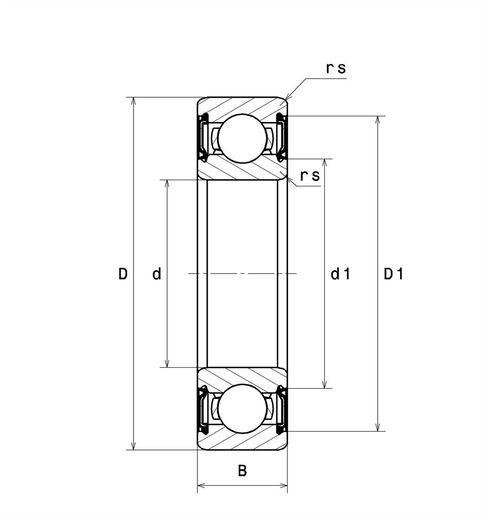

Basic Parameters

d – Internal diameter17 mm
D – External diameter40 mm
B – Bearing/Inner ring width12 mm
rs – Min fillet radius0,6 mm
Mass0,066 kg
C – Dynamic load10,6 kN
C0 – Static load4,6 kN
Cu – Fatigue limit load0,355 kN
f0 – Coefficient12.8
N lim – Grease lubrication limit speed12000 tr/min
Tmin – Min operating temperature-25 °C
Tmax – Max operating temperature110 °C
Send Inquiry Now
6203-2RS 62032RS Single Row Deep Groove Ball Bearing
ABOUT

More Product Details

DUHUI has focused on bearing manufacturing and R&D for over 20 years. We have a dedicated technical team to serve you. Feel free to contact us for a quote.

  • Related OEM Codes
  • Related Reference Codes
  • Application
CHRYSLER : 1889235CHRYSLER : 2098475CHRYSLER : 2098478
CHRYSLER : 3656444CHRYSLER : 4364852CHRYSLER : CH-1468
CHRYSLER : CH-1471DAF : 246587FIAT : 73117303
FIAT : 9921398FORD : 144514FORD : 1477514
FORD : 444197FORD : 494198FORD : 71BB-10A303-AA
FORD : 7RA10094FORD : A8AZ-10094-BFORD : AW-10094B
FORD : C3NF-10094-AFORD : C9ZZ-10094-AFORD : GE21
HITACHI : 6203BMHITACHI : 6203GHITACHI : 6203SS
HITACHI : 6203ZIKA : 5.8119.7IKA : 8.8119.0
ISUZU : 8942127140ISUZU : 8944584230KHD : 1136912
KHD : 1136956KHD : 1310638MAN : 81934100101
MAZDA : 0222-24-514MAZDA : 0290-24-524MAZDA : 2082-45-14
MERCEDES-BENZ : 625900174MERCEDES-BENZ : A625900174MERCURY : 76-676C91
MITSUBISHI : A930X94170MITSUBISHI : MD602021MITSUBISHI : S930P25670
NISSAN : 23120-46911NISSAN : 23120-80A00NISSAN : 23120-80W00
NISSAN : 23120-W7101OPEL : 1205227SUBARU : 23721-AA100
TOYOTA : 09009-10165VAG : 021903221AVAG : 021903221E
VAG : 028903221DVAG : 035903221VAG : 035903221F
VAG : 043903221VAG : 059903221AVAG : 068903221
VOLVO : 183378YANMAR : X6203B-M0000
AINDE : 6203-2RSAS-PL : ABE9004AS-PL : ABE9004(BULK)
AS-PL : ABE9004(BULK2)AS-PL : ABE9004(NACHI)AS-PL : ABE9004(NSK)
AS-PL : ABE9004(NSK)(BULK)AS-PL : ABE9004(NSK)(BULK2)AS-PL : ABE9004(NTN)
AS-PL : ABE9004(NTN)(BULK)AS-PL : ABE9004(SKF)(BULK2)AS-PL : ABE9004(SKF)
BOSCH : 1120900004BOSCH : 1120905050BOSCH : 1120905525
BOSCH : 1120905534BOSCH : 1120905050BOSCH : 1900905209
BOSCH : 1900905271BOSCH : 1995095722BOSCH : 1900905281
BV PSH : 055.000.016BV PSH : 055000016860CASCO : CBE58117
CASCO : CBE58117ASCASCO : CBE58116CASCO : CBE58117
DELCO REMY : 10467830DELCO REMY : 10469092DELCO REMY : 10473403
DELCO REMY : 1893306DELCO REMY : 1974861DELCO REMY : 3472438
DELCO REMY : 3472460DELCO REMY : 3472836DELCO REMY : 7982586
DELCO REMY : 900259DELCO REMY : 900529DELCO REMY : 904751
DELCO REMY : 904759DELCO REMY : 905229DELCO REMY : 905920
DELCO REMY : 907338DELCO REMY : 907354DELCO REMY : 907503
DELCO REMY : 907398DELCO REMY : 908019DELCO REMY : 908419
DELCO REMY : 931550325DELCO REMY : 954298DELCO REMY : 954378
DELCO REMY : 954609DELCO REMY : 954736DELCO REMY : 954818
DENSO : 9491000080DENSO : 9491000170DENSO : 9491001820
DENSO : 9491001990DENSO : 9491002030DENSO : 9491002090
DENSO : 9491003450DENSO : 9491003460ERA : 218025
FLAMAR : ROF820185FLAMAR : ROF820185HQGEBE : 881190
HC-Cargo : 140087HC-Cargo : 142269HC-Cargo : 230626
HC-Cargo : 333112KRAFT AUTOMOTIVE : 4124004LAUBER : BR62032RSM
LETRIKA : 16906253LETRIKA : 16905559LUCAS ELECTRICAL : UMB118
MAXGEAR : 10-0071MAXGEAR : 10-0015MAXGEAR : 10-0213
MAXSMER : 218025NIKKO : 104662037NIKKO : 870062033
NTN : 6203PowerMax : 1017633PowerMax : 81017633
QUINTON HAZELL : XB9903REAL : 25613711REAL : 25613711BN
RecOfficial : RECSBE58117RecOfficial : RECSBE58117.0S.I.D.A.T : 60.367
SACHS : 1863869009SANDO : SBE58117SANDO : SBE58117.0
Schaeffler FAG : 6203.2RSRSchaeffler LuK : 410003610Schaeffler LuK : 410010710
SKF : 6203.2RS1Schaeffler LuK : 410013310SKF : 62032RS
TIMKEN : 6203-2RSNRTIMKEN : 6203-2RSTIMKEN : 6203-2RSC3
VALEO : 70280VALEO : 57385VALEO : 590571
WAI : 6203-4NWAI : 6203-4WWAI : 6203-4E

Related Products

DUHUI-Professional Bearing Manufacturer

DUHUI is a professional bearing manufacturer in China. We hold ISO9001 and 16949 certifications. We have a 10,000 square meter factory and four fully automated bearing production lines. We can reliably supply 100,000 sets of high-quality bearings per month. Welcome to contact us for pricing.

Advantages of 6203-2RS bearing？
  • The 6203-2RS bearing features a simple structure, small size, and light weight.
  • Despite its light weight, the 6203-2RS bearing can withstand high radial loads.
  • The 6203-2RS bearing can withstand a certain amount of axial load while bearing radial loads.
Why choose DUHUI 6203-2RS bearing?
  • The DUHUI 6203-2RS bearing is manufactured using high-quality GCR15 bearing steel, possessing excellent wear and corrosion resistance, adapting to various complex environments, and offering a long service life.
  • The DUHUI 6203-2RS bearing cage is made of stamped steel, making it robust, durable, and long-lasting, while effectively distributing the bearing balls, thereby improving load capacity.
  • The DUHUI 6203-2RS bearing features a contact-type double-sided rubber dust cover seal, providing excellent sealing and effectively preventing contaminant intrusion and lubricant leakage.
  • The DUHUI 6203-2RS bearing uses high-quality imported Japanese grease, which has a low coefficient of friction, effectively reducing friction and extending bearing life.
  • The DUHUI 6203-2RS bearing comes with a 12-month warranty. We will be responsible for any bearing quality issues that arise within 12 months.
Why choose DUHUI?
  • DUHUI holds ISO9001 and TF16949 quality certifications.
  • DUHUI can provide CNAS testing and certification for bearing raw materials and finished products.
  • DUHUI has a dedicated quality inspection team and testing laboratory; our products undergo 100% inspection before shipment.
  • DUHUI has a dedicated technical team and after-sales team to promptly assist you in resolving any concerns.
