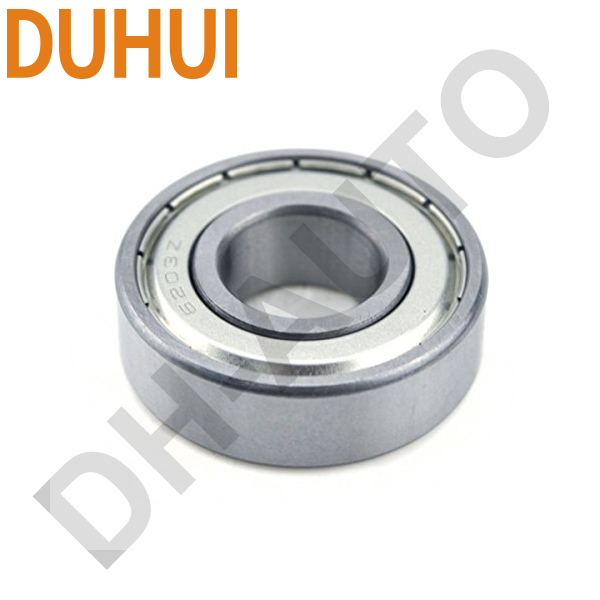

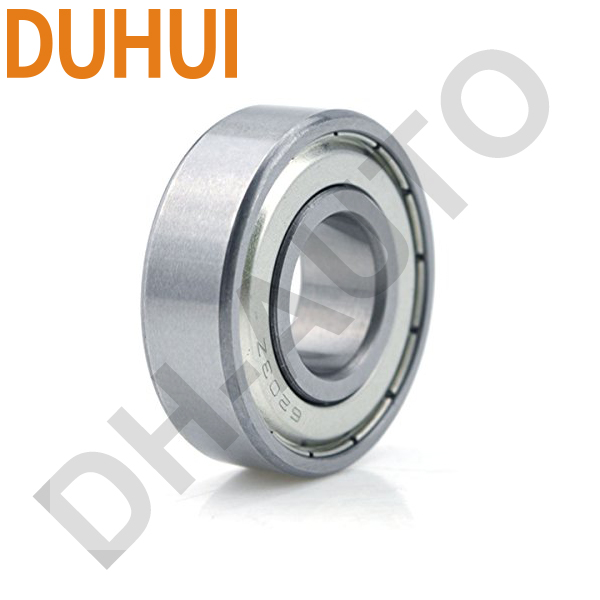

6203-ZZ Single Row Deep Groove Ball Bearing 17mm x 40mm x 12mm
- OE codes: 6203ZZ, 6203-ZZ, 62032Z, 6203-2Z
- The 6203ZZ bearing has an inner diameter of 17mm, an outer diameter of 40mm, a width of 12mm, and weighs 0.066kg.
- The 6203ZZ bearing has a low coefficient of friction, making it ideal for high-speed applications.
- The 6203ZZ bearing uses a non-contact metal dust cap seal, providing excellent sealing and low friction.
- The 6203ZZ bearing can withstand both radial and axial loads simultaneously, making it suitable for a wide range of applications.
6203ZZ 6203-ZZ 62032Z 6203-2Z Single Row Deep Groove Ball Bearing 17mm x 40mm x 12mm
The 6203ZZ bearing is a single-row deep groove ball bearing. It weighs 0.066kg and measures 17mm x 40mm x 12mm (dxDxB).
The 6203ZZ bearing uses a ZZ double-sided metal dust cap seal. This non-contact seal effectively prevents contaminant intrusion and grease leakage, while also minimizing friction.
The 6203ZZ bearing can withstand bidirectional loads simultaneously and operates within a temperature range of -40 °C to 150 °C, making it widely used in industrial, agricultural, and automotive fields.

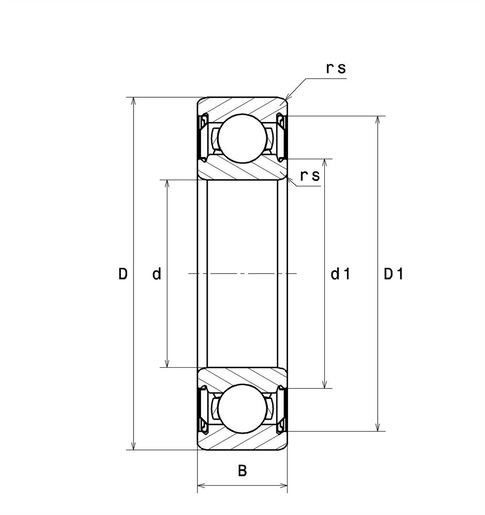

Basic Parameters
| d – Internal diameter | 17 mm |
| D – External diameter | 40 mm |
| B – Bearing/Inner ring width | 12 mm |
| rs – Min fillet radius | 0,6 mm |
| Mass | 0,066 kg |
| C – Dynamic load | 10,6 kN |
| C0 – Static load | 4,6 kN |
| Cu – Fatigue limit load | 0,355 kN |
| f0 – Coefficient | 12.8 |
| N lim – Grease lubrication limit speed | 18000 tr/min |
| Tmin – Min operating temperature | -40 °C |
| Tmax – Max operating temperature | 150 °C |
More Product Details
DUHUI has focused on bearing manufacturing and R&D for over 20 years. We have a dedicated technical team to serve you. Feel free to contact us for a quote.
- Related OEM Codes
- Related Reference Codes
- Application
| DAIHATSU : 90363-17004 | HONDA : 31106-817-003 | HONDA : 91051-KWF-901 |
| HONDA : 91052-815-168 | HONDA : 96150-620-30 | HONDA : 96150-620-3010 |
| ISUZU : 9-00090-679-0 | MAZDA : TF01-11-303 | MITSUBISHI : MD025454 |
| MITSUBISHI : MH0500024 | MITSUBISHI : MS556003 | MITSUBISHI : MS556033 |
| MITSUBISHI : MH556063 | NISSAN : 01011-00022 | NISSAN : 11924-S8061 |
| NISSAN : 11924-T5500 | NISSAN : 11924-W3420 | NISSAN : 21035-51H01 |
| NISSAN : 21035-T9000 | NISSAN : 23120-14611 | NISSAN : 32022-89TA1 |
| TOYOTA : 90363-17004 | SUBARU : 80631-7040 | TOYOTA : 90099-10155 |
| TOYOTA : 97143-06203 | TOYOTA : 90363-17013 | TOYOTA : 90363-17037 |
| ASVA : AB174012 | FEBEST : AS-6203-2RS | GHIBAUDI : CA0059 |
| Koyo : 62032RS | Koyo : 62032RSC3 | Koyo : 62032RSCM |
| Koyo : 6203CM | Koyo : 6203ZZ | Koyo : 6203ZZCM |
| NACHI : 6203-2NSE | NACHI : 62032RS | NACHI : 6203ZZ |
| NACHI : 6203ZZE | NPS : M23001 | NSK-RHP : 6203DDUCM |
| NTN : 62032RS | NTN : 6203-LLUC3 | NTN : 6203ZZ |
| Schaeffler FAG : 6203.2RSR.C3 | SNR : 6203.ZZ |
Related Products
DUHUI-Professional Bearing Manufacturer
DUHUI is a professional bearing manufacturer in China. We hold ISO9001 and 16949 certifications. We have a 10,000 square meter factory and four fully automated bearing production lines. We can reliably supply 100,000 sets of high-quality bearings per month. Welcome to contact us for pricing.
- Low Noise: The 6203ZZ bearing has low friction, ensuring stable, low-noise operation even at high speeds.
- High and Low Temperature Resistance: The 6203ZZ bearing can withstand operating temperatures from -40 °C to 150 °C, exhibiting good low- and high-temperature resistance.
- Bidirectional Load Capacity: The 6203ZZ bearing can withstand significant radial loads while also bearing a certain amount of axial load.
- The DUHUI 6203ZZ bearing uses high-quality bearing steel (CNAS material testing certified), ensuring robustness and durability.
- The DUHUI 6203ZZ bearing features a double-sided metal dust cover seal; this integrated seal effectively extends bearing life.
- The DUHUI 6203ZZ bearing uses imported Japanese white grease, which has a low coefficient of friction, effectively reducing wear and extending bearing life.
- The DUHUI 6203ZZ bearing features optimized manufacturing processes for its balls, raceways, and cage, maintaining low noise and high stability even at high speeds.
- DUHUI has over 20 years of experience in bearing manufacturing and R&D. We understand your needs and can provide professional guidance.
- DUHUI has over 15 years of experience exporting bearings. We can assist you with complex operations such as logistics, customs clearance, and taxation.
- DUHUI has two sales teams, one domestic and one international, to serve you. We can communicate face-to-face anytime.
- While ensuring product quality, DUHUI can offer you competitive prices.
