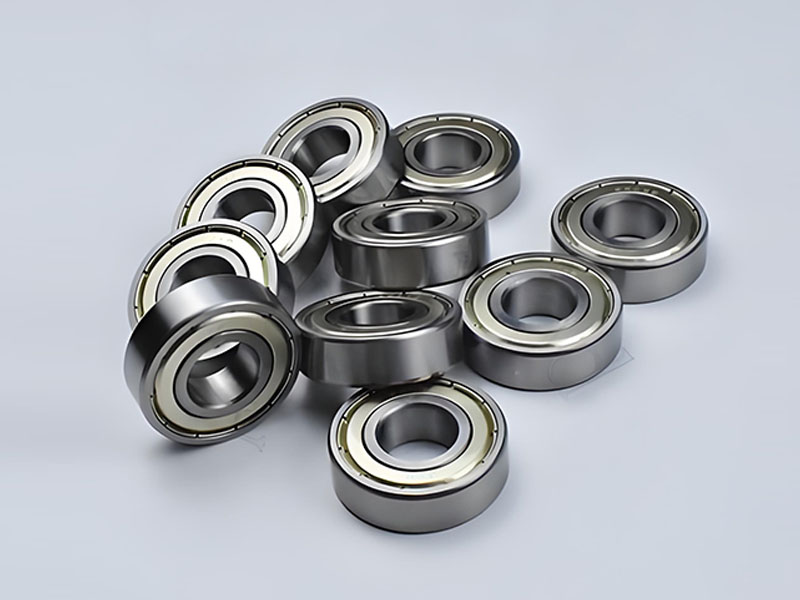

As a professional with over 20 years in the bearing manufacturing industry, I often encounter customers who are puzzled by the term “ABEC 7.” They see it stamped on bearings and assume it’s a universal guarantee of quality or speed. At DUHUI Bearing, with our two decades of manufacturing expertise and 15 years in international trade, we believe that true understanding leads to better purchasing decisions.
This guide will explain what ABEC 7 bearings really are, separating engineering fact from marketing fiction. Whether you are sourcing for industrial spindles or high-performance applications, understanding this standard is crucial.
1. Understanding the ABEC System
To comprehend what ABEC 7 means, you must first understand the system that defines it.
The Origin of ABEC
The ABEC (Annular Bearing Engineering Committee) system was established by the American Bearing Manufacturers Association (ABMA) . Its primary purpose was to create a standardized method for defining the dimensional tolerances of precision bearings, making it easier for manufacturers and engineers to specify components .
ABEC Grades: From 1 to 9
The ABEC scale ranges from ABEC 1 to ABEC 9. It is crucial to understand that the higher the ABEC number, the tighter the tolerances . This means the bearing components are manufactured to more precise dimensional specifications, resulting in less runout and greater rotational accuracy.
Here is a quick overview of the tolerance classes:
| ABEC Grade | ISO 492 | DIN 620 | JIS (Japanese Standard) |
| ABEC 1 | Class Normal | P0 | Class 0 |
| ABEC 3 | Class 6 | P6 | Class 6 |
| ABEC 5 | Class 5 | P5 | Class 5 |
| ABEC 7 | Class 4 | P4 | Class 4 |
| ABEC 9 | Class 2 | P2 | Class 2 |
Table: Comparison of international precision standards .
Key Technical Terms:
- Runout: This refers to the wobble or deviation of a bearing’s raceway as it rotates. ABEC 7 bearings have extremely low runout, ensuring smooth, vibration-free operation at high speeds.
- Parallelism: This relates to the precision of the bearing’s width. In high-precision applications, consistent width is vital for accurate installation and preload.
As a manufacturer, DUHUI Bearing utilizes advanced grinding and finishing processes to achieve these strict tolerances, ensuring our ABEC 7 components meet the rigorous demands of modern machinery.
2. Characteristics and Advantages of ABEC 7 Bearings
ABEC 7 bearings are often classified as “high-precision” or “super-precision” bearings, a step above standard precision classes like ABEC 1 or 3 . This precision unlocks several key performance features.
Precision and Speed: The tight tolerances of an ABEC 7 bearing minimize friction and internal clearance. This allows for significantly higher rotational speeds (RPM) with less heat generation.
Material Options: While the ABEC rating only defines dimensional precision, the material used is equally important. At DUHUI, we understand that an ABEC 7 bearing is only as good as its raw materials.
- High-Carbon Chromium Steel (GCr15): The industry standard for durability and load capacity .
- Stainless Steel: Offers superior corrosion resistance for applications in humid or sterile environments.
- Ceramic (e.g., Silicon Nitride): Full ceramic or hybrid (ceramic balls, steel races) ABEC 7 bearings are used in extreme conditions. They are lighter (40% less than steel), non-conductive, non-magnetic, and resistant to much higher temperatures (up to 1000°C) .
Common Applications: Because of their high-speed capability and precision, ABEC 7 bearings are found in:
- Machine Tool Spindles: Where accuracy and surface finish are critical .
- High-Speed Motors: Including those in aerospace and racing applications .
- Performance Sports Equipment: Such as high-end inline skates and skateboards .
- Medical Equipment: Like dental handpieces and surgical tools, where smooth, vibration-free operation is essential .
Common Size Standards: The most common size for consumer applications is 608, with dimensions of 8mm bore, 22mm outer diameter, and 7mm width . However, industrial ABEC 7 bearings come in a vast range of sizes to fit specific shafts and housings.
3. Common Misconceptions About ABEC Ratings
This is the most critical section for any buyer. After 20 years in the industry, I can tell you that misunderstanding the ABEC system is the number one source of purchasing errors.
ABEC Ratings and Load Capacity: A higher ABEC rating does not mean a higher load capacity . Load capacity is determined by the bearing’s internal design, material, and heat treatment. An ABEC 1 bearing from a heavy-duty application can support far more weight than an ABEC 7 bearing from a skateboard.
Higher ABEC = Always Better? Absolutely not. Using an ultra-precision ABEC 7 bearing in a rough, dirty, or shock-loaded application is a waste of money and can lead to premature failure. The tight internal clearances of an ABEC 7 bearing are more susceptible to damage from contamination or misalignment. A lower-grade bearing with better sealing might be the superior choice for an agricultural application .
Comparing to Other Standards: As shown in the table in Section 1, ABEC 7 is directly equivalent to ISO P4 and DIN P4. Understanding these cross-references is vital when sourcing components for international equipment.
How ABEC Fits In: The ABEC rating only covers dimensional and running accuracy. It does not specify:
- Material Quality
- Lubrication Type
- Cage Material (steel, brass, polymer)
- Sealing Effectiveness
- Noise or Vibration Quality
At DUHUI Bearing, we emphasize that the ABEC rating is just one piece of the puzzle. The manufacturer’s expertise in material selection, heat treatment, and quality control is what ultimately defines a bearing’s real-world performance.
4. How to Choose the Right ABEC 7 Bearing
Choosing a bearing is an engineering decision. Here is a framework to guide you.
4.1. According to Application Scenarios
Ask yourself these key questions:
Speed Requirements: Are you operating above 10,000 RPM? If so, ABEC 7 or higher is often necessary.
Precision Needs: Does your application require minimal vibration or precise shaft location (e.g., a CNC router)?
Load Requirements: Is the load light to moderate? ABEC 7 bearings are optimized for speed and precision, not extreme loads.
Environmental Conditions: Will the bearing be exposed to dust, moisture, or chemicals? If yes, focus on material (stainless steel) and sealing, not just precision.
Budget Consideration: ABEC 7 bearings are significantly more expensive than ABEC 1 or 3. Only pay for the precision you need.
Application Type:
- High-Speed Spindle → ABEC 7 (Steel or Hybrid Ceramic)
- Electric Motor (Standard) → ABEC 1 or 3
- Aggressive Skate Park Use → ABEC 5 or 7 with Durable Seals
- Corrosive Environment → ABEC 7 (Full Ceramic or Stainless Steel)
4.2. According to Design and Material
If you’ve determined you need the precision of ABEC 7, the next step is choosing the right material. Here is a comparison based on our manufacturing experience at DUHUI:
| Feature | Chrome Steel (GCr15) | Stainless Steel | Full Ceramic (Si₃N₄) |
| Durability & Wear | Excellent, high hardness | Good, less hard than chrome steel | Exceptional, extremely hard |
| Corrosion Resistance | Poor, requires coating/sealing | Excellent | Superior, completely inert |
| Weight | Standard | Slightly heavier | ~40% lighter |
| Speed & Friction | Very good | Good | Superior, runs cool |
| Heat Resistance | Up to ~150°C | Up to ~300°C | Up to 1000°C |
| Cost | Standard | Higher | Highest |
| Electrical Conductivity | Conductive | Conductive | Non-Conductive |
4.3. Comprehensive Consideration: Performance vs. Price
When to Choose ABEC 7 Bearings:
- Your application demands speeds exceeding 10,000-15,000 RPM.
- You require minimal vibration for surface finish or sensitive equipment.
- You are designing for high-performance applications like racing, aerospace, or precision medical devices.
- Your system operates in a clean, controlled environment where the precision won’t be compromised by contamination.
When to Choose Lower ABEC Ratings (ABEC 1, 3, 5):
- Your application is general purpose (conveyors, pumps, standard automotive).
- The operating environment is dirty or dusty.
- The application involves heavy shock loads.
- Cost is the primary constraint. As a manufacturer, DUHUI Bearing always advises our clients to “right-size” their precision to avoid overspending.
5. Maintenance of ABEC 7 Bearings
High precision requires high care.
General Maintenance Precautions:
- Cleanliness is King: Never open an ABEC 7 bearing package until you are ready to install it. Even a speck of dust can cause noise or failure.
- Proper Tools: Use precision tools and presses. Never hammer a bearing into place, as this will brinell the raceways and destroy its precision.
- Lubrication: Use high-quality, clean lubricant. Over-lubrication can cause heat buildup, while under-lubrication leads to wear .
Application-Specific Maintenance:
- Skate Bearings: If used in wet or dusty conditions, remove the bearings, clean them with a dedicated degreaser, allow them to dry completely, and relubricate with a light oil . For high-use skaters, replacement every 6 months is recommended to maintain performance .
- Industrial Spindles: Follow a strict, scheduled maintenance plan. This typically involves ultrasonic cleaning and re-lubrication with precise amounts of grease or oil.
- Medical Equipment: Follow the equipment manufacturer’s sterilization and maintenance protocols. Ceramic bearings are often chosen here precisely because they require minimal maintenance and can withstand autoclaving .
Storage Recommendations:
Always store bearings in their original packaging in a cool, dry, and vibration-free environment. The packaging is designed to protect the precision surfaces from corrosion and contamination.
6. FAQs About ABEC 7 Bearings
Q: ABEC 7 bearings vs. ABEC 9 bearings: what’s the difference?
A: ABEC 9 bearings have even tighter tolerances than ABEC 7 . They represent the highest level of precision in the ABEC system and are used in the most demanding applications, such as ultra-high-speed spindles and aerospace instrumentation. The cost increases exponentially with this level of precision.
Q: Common sizes of ABEC 7 bearings?
A: The most common size in the consumer market is the 608 (8x22x7mm) . However, in the industrial sector, ABEC 7 precision is available across the full spectrum of metric and inch sizes, including 6200, 6300 series, and various angular contact bearing sizes.
Q: Do ABEC 7 bearings require special maintenance?
A: They require cleaner and more careful maintenance. Because of their tight internal clearances, they are more vulnerable to damage from dirt or incorrect lubrication. Using the correct tools for installation is also critical .
Q: How long do ABEC 7 bearings last?
A: Lifespan depends entirely on application, load, speed, lubrication, and maintenance. In a clean, well-lubricated industrial spindle, they can last for years. In a skateboard used daily in harsh conditions, they might need replacement every 6-12 months .
Q: What is the best brand for ABEC 7 bearings?
A: The “best” brand is one that combines precision manufacturing with high-quality materials and rigorous quality control. At DUHUI Bearing, we pride ourselves on meeting these stringent requirements. A reputable manufacturer will be transparent about their materials, tolerances, and quality processes .
Q: How do I know when it’s time to replace my ABEC 7 bearings?
A: Listen and feel. Key indicators include: unusual noise (grinding, rumbling), visible vibration, increased operating temperature, or roughness when spinning the bearing by hand .
Q: What is the relationship between ABEC 7 bearing lifespan and maintenance?
A: They are directly proportional. Proper maintenance—correct lubrication, cleanliness, and careful handling—is the single most important factor in maximizing the lifespan of a high-precision ABEC 7 bearing. Neglect will lead to rapid, premature failure.
At DUHUI Bearing, our 20 years of manufacturing experience have taught us that a bearing is only as good as the expertise behind it. We don’t just manufacture to a grade; we engineer for performance. If you have specific questions about your application or need a reliable source for high-precision bearings, please contact our team. We are here to help you find the perfect bearing solution.
