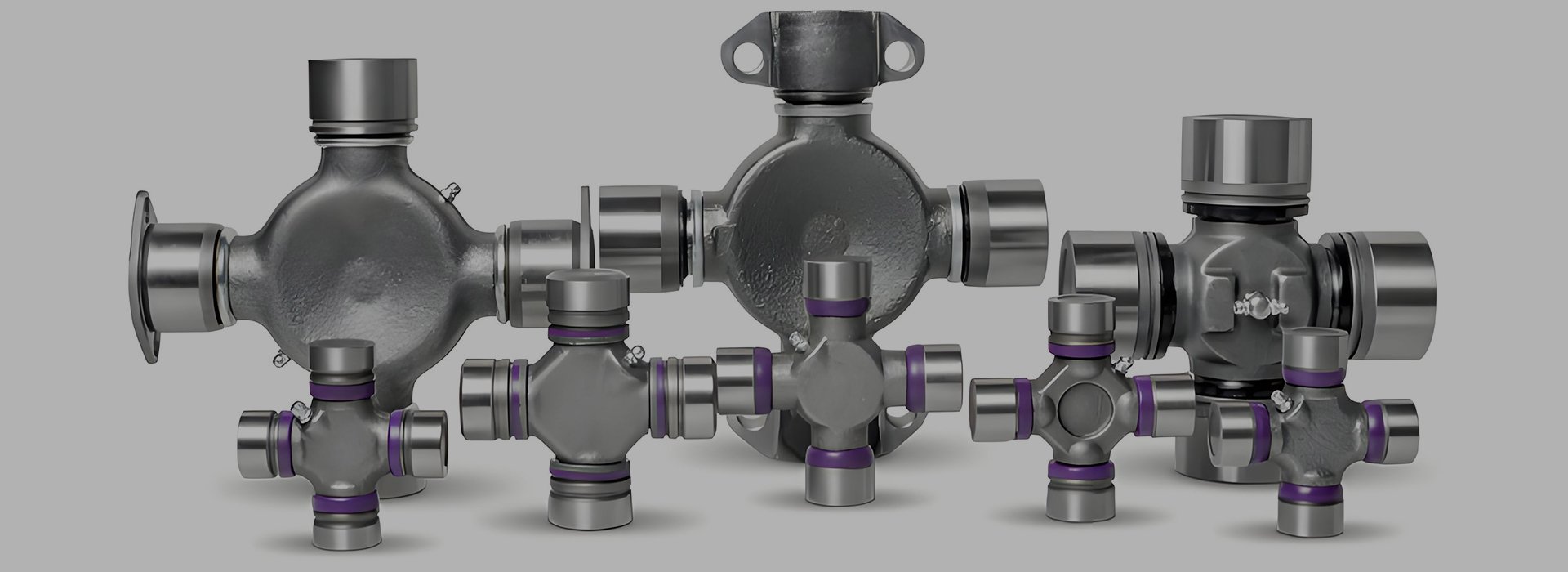

Your Professional Universal Joint Cross Supplier
DUHUI is a leading supplier of universal joint cross in China, we are certified 16949 and 9001 quality certifications. Our factory covers an area of over 10,000 square meters and is equipped with high-end advanced equipment such as Sigma CNC precision turning machines, Wheeler machining centers, fully automatic superfinishing machines, etc. The monthly output is expected to reach 100,000 sets of universal joint crosses. In addition, we are equipped with various precision testing instruments to ensure product quality.
DUHUI has more than 2,000 universal joint cross models (DCTUJ Series) in stock, and each model has corresponding drawings. From forging, rough turning, fine turning to assembly, all processes are processed according to the drawings, ensuring that the universal joint cross meets the original OE standards. Our universal joint cross is of more reliable quality and more competitive.
We have independent design and processing capabilities and can produce standard and custom non-standard universal joint crosses. If you have any needs, please contact us immediately.
Universal Joint Cross By Structure

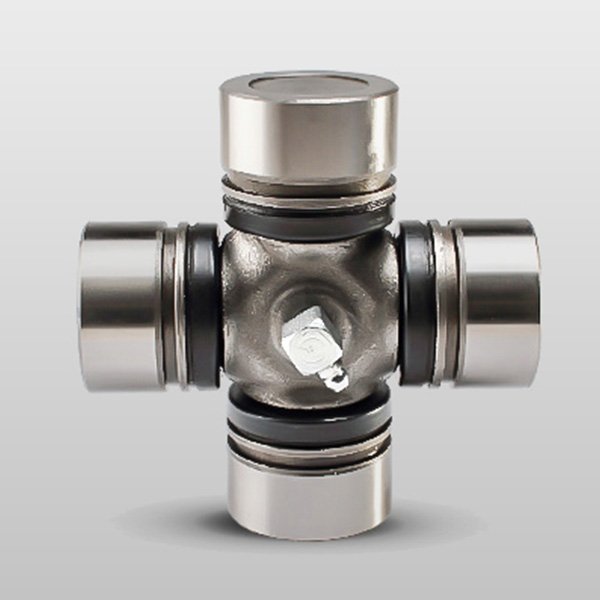

Universal Joint Cross (inside snap type)

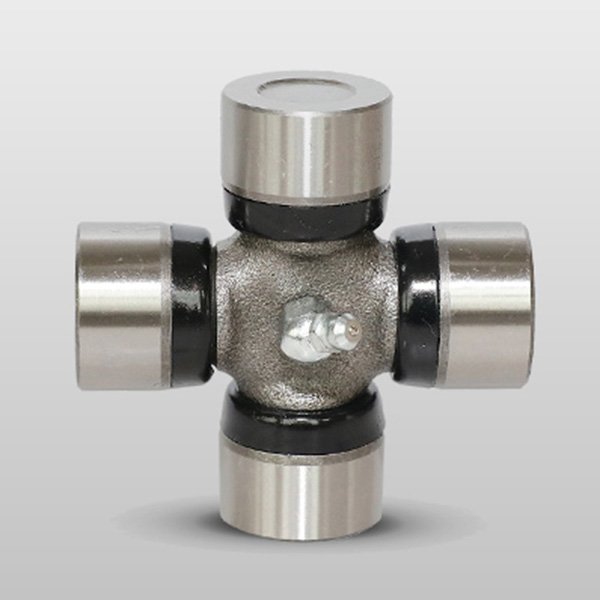

Universal Joint Cross (outside snap type)

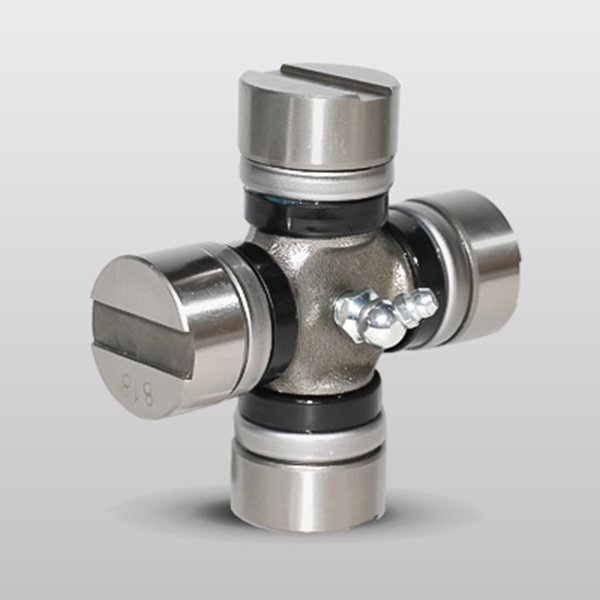

Universal Joint Cross (slotted type)

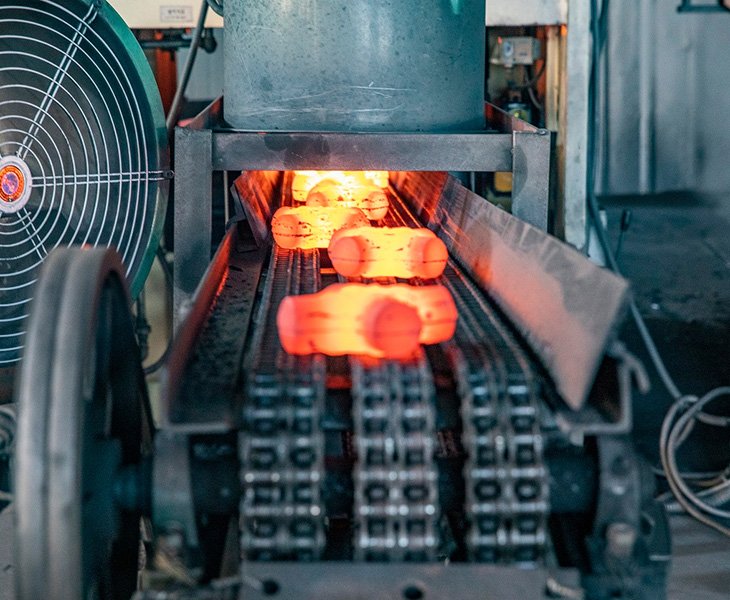

Material Selection of DUHUI Universal Joint Cross
DUHUI universal joint cross is forged from high-quality alloy steel, offering high strength and good wear resistance. The forged blank is quenched at 850°C and tempered at 550°C, which enhances toughness while maintaining hardness. The needle roller is made of GCR15 bearing steel and is ultra-fine ground and polished to ensure low friction and high wear resistance.

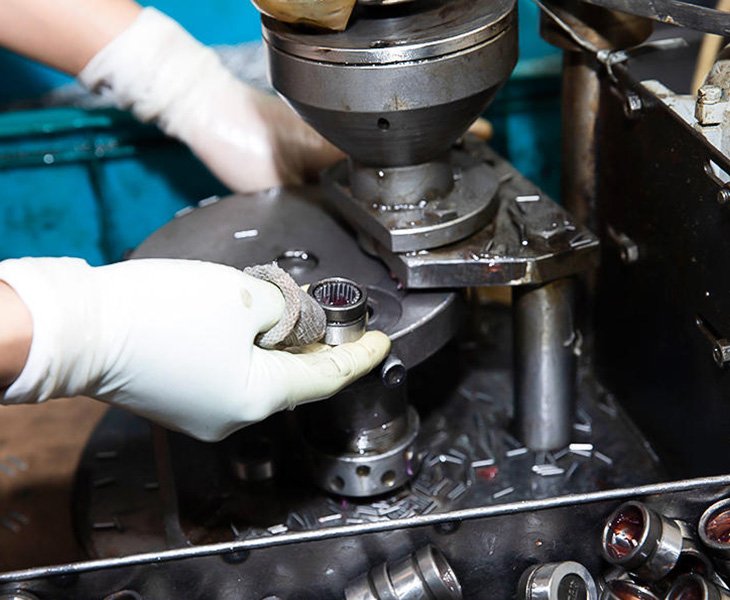

Surface Treatment of DUHUI Universal Joint Cross
The surface of DUHUI universal joint cross adopts a gas carburizing process. After carburizing, we then perform a carbonitriding (CN) treatment. It can form multiple composite hardened layers, which effectively improves wear resistance, corrosion resistance, etc. Combined with DUHUI’s unique surface coating process, it effectively extends its lifespan.

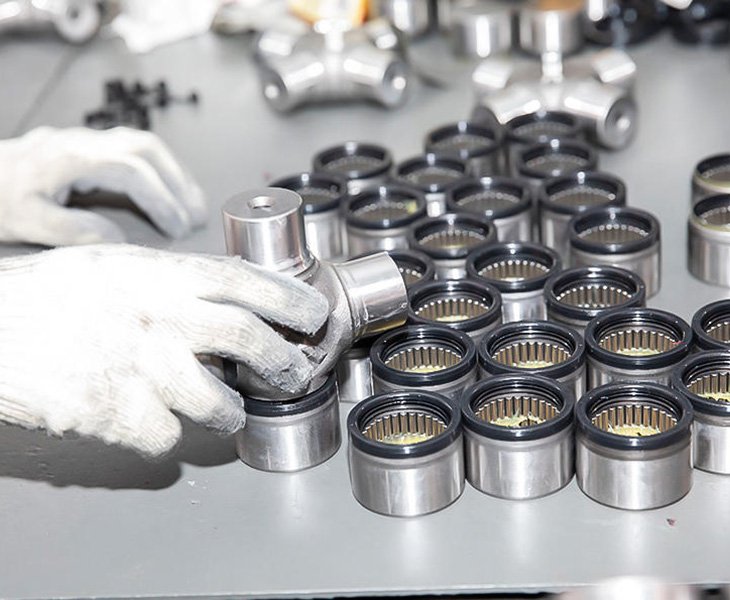

Unique Design of the DUHUI Universal Joint Cross
The sealing ring of the DUHUI universal joint cross adopts a labyrinth double-lip design, which can effectively prevent the entry of pollutants. DUHUI universal joint cross lubrication design adopts a radial design, which can distribute grease 360 degrees to the bearing surface. And we use a lubricable design that allows for re-injection of new grease. It is convenient for maintenance and can effectively clean pollutants.
It is primarily used to connect the differential and the drive shaft.
A universal joint cross consists of a driving fork, a driven fork, a cross shaft, and a needle bearing.
All cross joint bearings are factory lubricated.
I’ll tell you a simple way to determine if your cross joint needs service. Listen carefully. If you hear a clicking sound when shifting gears (from D to R) or a squeaking sound when driving forward or in reverse, which becomes more pronounced at higher speeds, your cross joint is low on grease and needs service.
