The Difference Between 6205Z and 6205ZZ Bearings

When selecting a bearing for a motor, pump, or industrial gearbox, the 6205 series deep groove ball bearing is often a top contender. It is a workhorse in the mechanical world, known for its versatility and reliability. However, a common point of confusion lies in its suffixes: 6205Z and 6205ZZ.

While they look almost identical and share the same core dimensions, the difference between a single shield and a double shield is critical for performance and longevity. This guide will clarify the differences, helping you select the perfect bearing for your specific application.

Understanding Deep Groove Ball Bearings

Before diving into the specifics of the 6205 variants, it’s helpful to understand the bearing family they belong to. A deep groove ball bearing is a common type of rolling-element bearing. Its design is simple yet highly effective.

Key Characteristics:

• Low Friction: Its design minimizes rotational friction, making it suitable for high-speed operations.
• Versatile Load Handling: It is engineered to handle both radial forces (perpendicular to the shaft) and moderate axial forces (parallel to the shaft).

The Role of Shields

To protect the precision internal components, bearings often incorporate shields or seals. Their primary jobs are:

• Contaminant Exclusion: To keep out dust, dirt, moisture, and other particles that can cause premature wear.
• Lubricant Retention: To hold the factory-packed grease inside the bearing, ensuring continuous lubrication.

Common closures include the metal shield (Z or ZZ) and the contact rubber seal (RS or 2RS). This article focuses specifically on the metal-shielded variants.

Technical Specifications: The 6205 Series Foundation

It is important to note that the fundamental dimensions and load ratings for a 6205Z and a 6205ZZ are identical. The difference lies solely in the closure type.

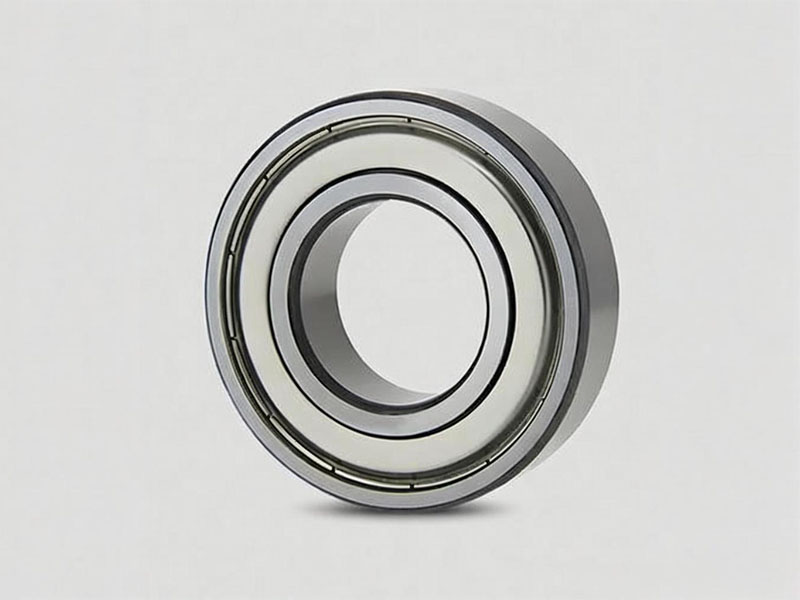

In-Depth Look: 6205Z Bearing (Single Shield)

The “Z” suffix indicates a single metal shield on one side of the bearing. The other side remains open.

Key Characteristics:

• Lower Friction: With only one shield, there is marginally less internal resistance compared to a fully shielded bearing. This can be beneficial in very high-speed applications.
• Heat Dissipation: The open side allows for slightly better airflow and heat dissipation from the internal rolling elements.
• Relubrication Capability: This is the defining feature of the Z bearing. The open side provides a path for fresh grease to enter and old grease to be expelled if the bearing housing is equipped with a lubrication fitting.

Typical Applications:

• Electric Motors: Often used in motors where a grease fitting is installed for periodic maintenance.
• Conveyor Systems: Ideal for applications with central lubrication systems.
• Pumps & Gearboxes: Suitable when the bearing is housed in a controlled environment and requires regreasing.
• Applications with Higher Operating Temperatures: Where the ability to regularly introduce new grease helps manage heat and lubricant life.

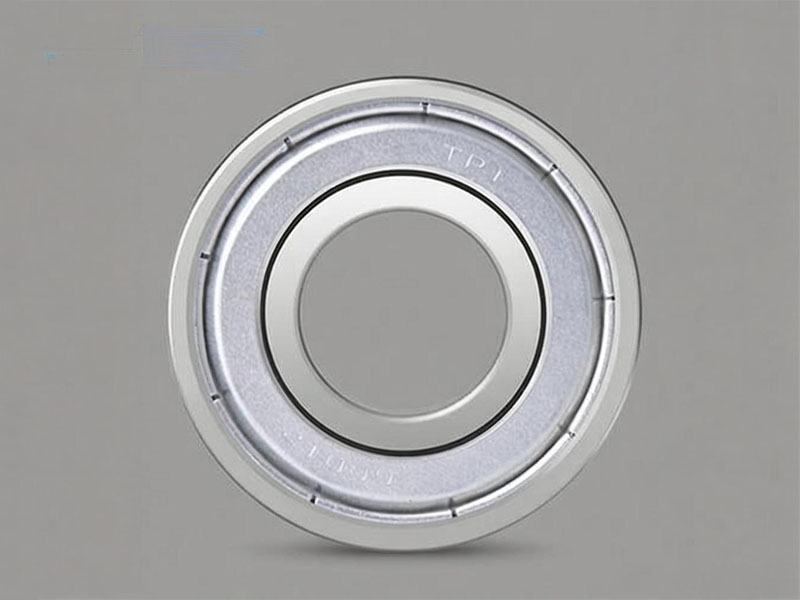

In-Depth Look: 6205ZZ Bearing (Double Shield)

The “ZZ” suffix signifies that the bearing has a metal shield on both sides. This creates a permanently enclosed, factory-lubricated unit.

Key Characteristics:

• Enhanced Protection: The double shield acts as a robust barrier, preventing fine dust, dirt, and other contaminants from entering the bearing from either side. This is crucial in harsh environments.
• Superior Lubricant Retention: The shields effectively keep the precision-engineered grease packed around the balls and raceways for the life of the bearing.
• Maintenance-Free Operation: Once installed, a 6205ZZ bearing requires no further lubrication. It is designed to be “fit and forget.”

Typical Applications:

• Automotive Components: Commonly found in alternators, tensioner pulleys, and other under-hood applications where maintenance is not practical.
• Industrial Machinery: Ideal for gearboxes, fans, and motors operating in dusty or dirty factory conditions.
• Agricultural Equipment: Protects against the dust and debris common in farming environments.
• Home Appliances: Used in washing machines, power tools, and fans for long, quiet, maintenance-free life.

Head-to-Head Comparison: 6205Z vs. 6205ZZ

How to Choose: Which One Do You Need?

Your operating conditions and maintenance strategy will dictate the best choice.

Choose the 6205Z bearing if:

• Your machinery has a centralized or periodic lubrication system.
• The bearing operates in a clean, controlled environment.
• You are running at extremely high speeds where the absolute minimum friction is a priority.
• Your maintenance schedule involves regularly flushing and regreasing bearings.

Choose the 6205ZZ bearing if:

• The operating environment is dusty, dirty, or damp.
• The bearing is located in a hard-to-reach area where maintenance is difficult or impossible.
• You need a long, reliable service life with zero maintenance.
• The application is cost-sensitive regarding long-term labor for lubrication.

Installation and Handling Best Practices

Proper installation is key to maximizing bearing life, regardless of the type.

• General Rules: Always use the correct mounting tools. Ensure the shaft and housing are clean and within tolerance. Work in a clean area to prevent introducing contamination during installation.
• For 6205Z Bearings: Pay attention to the orientation of the open side. It should face the grease supply if you plan to relubricate. Be careful not to dent or dislodge the single shield during mounting.
• For 6205ZZ Bearings: Never attempt to remove the shields or wash the bearing. ZZ bearings come pre-packed with the correct amount and type of grease for their entire service life. Washing them will remove this grease and drastically shorten their life.

Why Trust DUHUI Bearing for Your 6205 Needs?

DUHUI Bearing has been a reliable name in the bearing industry. Our 20 years of manufacturing experience ensure that every 6205Z and 6205ZZ bearing we produce meets rigorous standards for precision and durability. With 15 years of exporting to global markets, we understand the diverse challenges faced by engineers worldwide.

We don’t just supply bearings; we provide solutions. Whether you require a single-shielded bearing for a custom lubrication system or a double-shielded bearing for a rugged, maintenance-free application, we have the expertise and the product to match your needs.

Conclusion

The choice between a 6205Z and a 6205ZZ bearing ultimately comes down to a single question: do you need the ability to relubricate, or do you need maximum protection from contamination?

• Choose 6205Z for relubricated systems in clean environments.
• Choose 6205ZZ for maintenance-free operation in harsh conditions.

Still unsure which bearing is right for your application? Contact the experts at DUHUI Bearing today. Our team can provide the guidance you need and a competitive quote for your project. Let our experience work for you.
