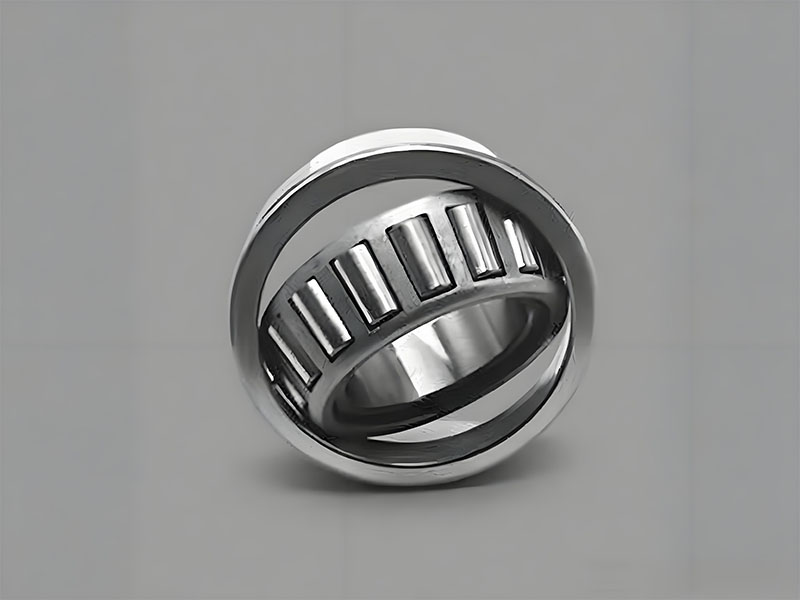

The L44643 bearing is a cornerstone component in the world of power transmission and motion systems. As a widely used inch-sized tapered roller bearing, it is renowned for its ability to handle heavy loads in a compact design. Whether you are maintaining a boat trailer, repairing agricultural equipment, or servicing industrial machinery, understanding this bearing is essential for ensuring equipment reliability and longevity. This comprehensive guide will walk you through everything you need to know about the L44643 bearing, from its components and specifications to professional installation and troubleshooting.
1.Decoding the L44643 Bearing Assembly: Components and Materials
It’s a common point of confusion, but the L44643 bearing is actually a part of a set. A complete tapered roller bearing consists of two main components that are manufactured to work together as a system.
- The Cone (L44643): This is the inner race. The number L44643 specifically refers to the cone assembly, which includes the inner ring, the tapered rollers, and the cage that holds the rollers in place. This unit is designed to be mounted onto a shaft or spindle.
- The Cup (L44610): This is the outer race. Designated as L44610, the cup is the outer ring that the rollers ride on. It is pressed into the housing or hub bore.
Material and Manufacturing Quality
At DUHUI Bearing, we understand that material quality dictates performance. The L44643 and L44610 components are typically manufactured from high-quality chrome steel, such as GCr15. This material is chosen for its exceptional hardness, wear resistance, and ability to withstand high contact stresses. The manufacturing process involves precision forging, meticulous heat treatment to achieve the optimal microstructure, and precision grinding to ensure the exacting tolerances required for smooth operation and long service life. This commitment to quality is what separates a bearing that lasts from one that fails prematurely.
2.L44643 Bearing Specifications and Technical Data
To ensure you select the correct bearing for your application, it’s crucial to understand its standard specifications. The L44643 bearing is part of the inch-series dimensioned family.
Critical Dimensions:
- Bore Diameter (d): 1.0625 inches (26.988 mm)
- Outer Diameter (D): 2.3750 inches (60.325 mm)
- Overall Width (Assembly): 0.6560 inches (16.662 mm)
- Cone Width (B): 0.6600 inches (16.764 mm)
- Cup Width (C): 0.5150 inches (13.081 mm)
Load Ratings:
- Basic Dynamic Load Rating (Cr): Approximately 5,340 lbs (23.8 kN). This indicates the bearing’s capacity to endure continuous, rotating loads over a defined lifespan.
- Basic Static Load Rating (Cor): Approximately 5,070 lbs (22.6 kN). This is the maximum load the bearing can withstand when not rotating, protecting against permanent deformation.
Operating Limits:
- Temperature Range: Generally, L44643 bearings can operate effectively in a range from -30°C to +110°C. Higher temperatures may require special lubricants or heat-stabilized materials.
- Speed: As a tapered roller bearing, it is suitable for low to moderate speed applications. High-speed continuous use may require special considerations for lubrication and cooling.
3.Common Applications of the L44643 Bearing
The robust design and standardized size of the L44643 bearing make it a versatile component found in a wide array of equipment.
- Trailer and Agricultural Applications: This is perhaps the most common use. You’ll find L44643 bearings in boat trailers, utility trailers, and various agricultural implements like balers and spreaders, where they reliably support heavy radial and axial loads from rough terrain.
- Automotive and Power Transmission: In automotive applications, these bearings are often found in non-drive wheel hubs, differentials, and some gearbox applications, providing smooth rotation and precise shaft location.
- Industrial and Material Handling: From small conveyor rollers and gearboxes to metalworking and plastic machinery, the L44643 bearing provides a compact and durable solution for supporting rotating shafts in demanding industrial environments.
4.Key Advantages of Choosing the L44643 Bearing
Why is this particular bearing so popular? Its advantages stem directly from its tapered roller design.
- Superior Load Handling: Unlike ball bearings, the tapered design of the L44643 allows it to excel at handling combined loads—both radial (perpendicular to the shaft) and axial (parallel to the shaft)—simultaneously. This makes it ideal for applications like trailer wheels, which experience both the weight of the vehicle and cornering forces.
- Built for Durability and Reliability: The use of hardened chrome steel and a design that distributes stress across the roller contact patch makes this bearing incredibly durable. It is well-suited to withstand the shock loads and vibrations common in agricultural and industrial settings.
- Versatility and Ease of Replacement: As a standardized inch-series bearing, the L44643 assembly is a readily available replacement part across the globe. This interchangeability simplifies maintenance and reduces downtime for a vast range of equipment.
5.Professional Installation and Maintenance Best Practices
To maximize the lifespan of your L44643 bearing, correct installation and regular maintenance are non-negotiable. Here is a professional guide to ensure peak performance.
Step-by-Step Installation Guide
- Preparation: Gather the right tools: a bearing press or appropriate-sized socket, a torque wrench, clean rags, and safety glasses. Ensure your workspace is clean.
- Inspection: Before installation, thoroughly clean and inspect the shaft (for the cone) and the housing bore (for the cup). Look for any burrs, scoring, or wear. Even minor imperfections can lead to premature bearing failure.
- Cup Installation: Using a press or a suitable driver tool, press the L44610 cup squarely into the hub bore until it is fully seated against the shoulder. Ensure it is not tilted.
- Cone Installation: Similarly, press the L44643 cone assembly onto the shaft or spindle until it fits snugly against the shoulder. Crucially, never strike the bearing directly with a hammer, as this can damage the rollers and raceways.
- Lubrication: Apply a high-quality, lithium-based bearing grease. Pack the space between the rollers and cage thoroughly, and apply a coat to the cup’s raceway. The correct amount is key – the bearing cavity should be full, but the hub itself should not be overfilled.
- Assembly and Adjustment: Assemble the hub onto the spindle. While rotating the hub, tighten the spindle nut to seat the components. Then, back off the nut slightly and tighten to the specified torque to achieve the correct bearing end-play (a slight clearance) or preload. This step is critical and incorrect adjustment is a leading cause of failure.
Essential Maintenance Practices
- Regular Lubrication: Establish a relubrication schedule. For trailer bearings, this is often annually or every 10,000-12,000 miles. For industrial equipment, follow the manufacturer’s recommendations.
- Condition Monitoring: Be vigilant. Listen for any grinding or rumbling noises during operation. After use, carefully check for excessive heat at the hub—if it’s too hot to touch, there is a problem.
- Inspection: Whenever you service related components, take the opportunity to inspect the bearings. Look for signs of pitting, spalling (flaking of metal), or discoloration from heat.
Troubleshooting Common L44643 Bearing Issues
| Problem | Potential Causes | Preventive Measures |
| Excessive Noise | Contamination (dirt, water), insufficient lubrication, incorrect preload, bearing fatigue. | Ensure seals are intact, follow lubrication schedule, adjust correctly during installation, replace worn parts. |
| Overheating | Too much or too little grease, excessive preload (too tight), misalignment, dragging seals. | Follow lubrication guidelines, use a torque wrench for precise adjustment, check for bent spindles or worn seals. |
| Premature Wear | Contamination, corrosion, shock loads exceeding bearing capacity, improper installation (e.g., hammering). | Handle with care, protect from contaminants, verify application loads are within bearing ratings. |
Frequently Asked Questions (FAQ)
What is the difference between the L44643 and the L44610?
The L44643 is the inner race and roller assembly (the cone), while the L44610 is the outer race (the cup). They are two halves of a single bearing unit and must be used together.
How do I know when my L44643 bearing needs replacement?
Key signs include: rough or grinding feeling when rotating the wheel by hand, visible pitting or spalling on the rollers or races, discoloration from overheating, or excessive looseness (play) after adjustment.
Can I use an L44643 bearing in a high-speed application?
The L44643 is primarily designed for low to moderate speeds. For very high-speed continuous operations, you may need a specially designed bearing with advanced lubrication and cooling. Always consult your equipment’s manual.
How often should I grease my L44643 bearing?
For trailer applications, a good rule of thumb is to repack the bearings with fresh grease annually or every 10,000-12,000 miles. For industrial use, follow the Original Equipment Manufacturer (OEM) recommendations.
What is the correct torque for the spindle nut on an L44643 assembly?
This varies by application and spindle design. It is vital to consult your specific equipment’s service manual. The correct torque ensures the proper end-play, which is essential for long bearing life.
